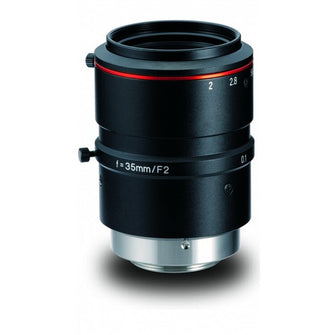

Kowa LM35JC10M Lens

Kowa
|
LM35JC10M
$836.00 $0.00( / )
Shipping calculated at checkout.

2/3" 35mm 10MP Kowa LM35JC10M Lens

Categories:
, ,

2/3" 35mm 10MP Kowa LM35JC10M Lens



The Kowa LM35JC10M features 200lp/mm resolution and low distortion in order to maximize performance for high-end applications.

Floating mechanism design virtually eliminates optical abberations from close distance to infinity

High precision aspherical lens greatly reduces distortion.

Incorporates wide-band coating and a floating mechanism design to maintain a high transmission from visible to NIR.

Easy installation in compact machine vision systems.



Aperture (F-stop):2 - 16
Aperture (control):Manual
Application field:Broadcast, Machine Vision
Back focus in air (mm):14,2
Control (focus):Manual
Field of view at minimum working distance, horizontal (mm):23,4
Field of view at minimum working distance, vertical (mm):17,6
Filter size (mm):M34 x P0,5
Focal length (mm):35
Focus range (m):0,1 - ∞
Megapixel:10
Mount:C-mount
Pixel size (µm):2,5
Resolution, centre (lp/mm):200
Resolution, margin (lp/mm):160
Sensor size:2/3"
Series:JC10M
Size (mm):Ø43 X 49
TV distortion (%):0,05
Temperature range (℃):-10°C - +50°C
Type of lens:Fixed Focal Lens
Wavelength range:Broad Band Coating (400nm – 1000nm)
Weight (g):160
Vendor: Kowa SKU: LM35JC10M Weight: 1.0 lb

Ships in 1-3 days. Full manufacture warranty.

Authorized Kowa distributor.

  • Image Size 2/3" (8.8 x 6.6 x 11mm)

  • Iris Range (F-Stop) F2.0 - 16

  • Angle of View 1/2" (Hor. x Ver. x Dia.) 10.4 x 7.8 x 13.0°

  • Angle of View 1/1.8" (Hor. x Ver. x Dia.) 11.7 x 8.8 x 14.6°

  • Angle of View 2/3" (Hor. x Ver. x Dia.) 14.3 x 10.8 x 17.8° TV Distortion 0.05%

  • Mount C-mount

  • Temperature Range -10°C ~ +50°C

  • Storage Temperature Range -20°C ~ +60°C

  • Resolution: Center/Corner Center 200lp/mm / Corner 140lp/mm

  • Weight 160g
