Shadowless Illumination
The Moritex Shadowless Illumination series features soft, uniform, evenly diffused lighting. This series is used in applications for laser marking reading, wafer/glass substrate and glass/dirt scratches, and edge extraction inspection, while the CV-DR is suited for low angle needs.

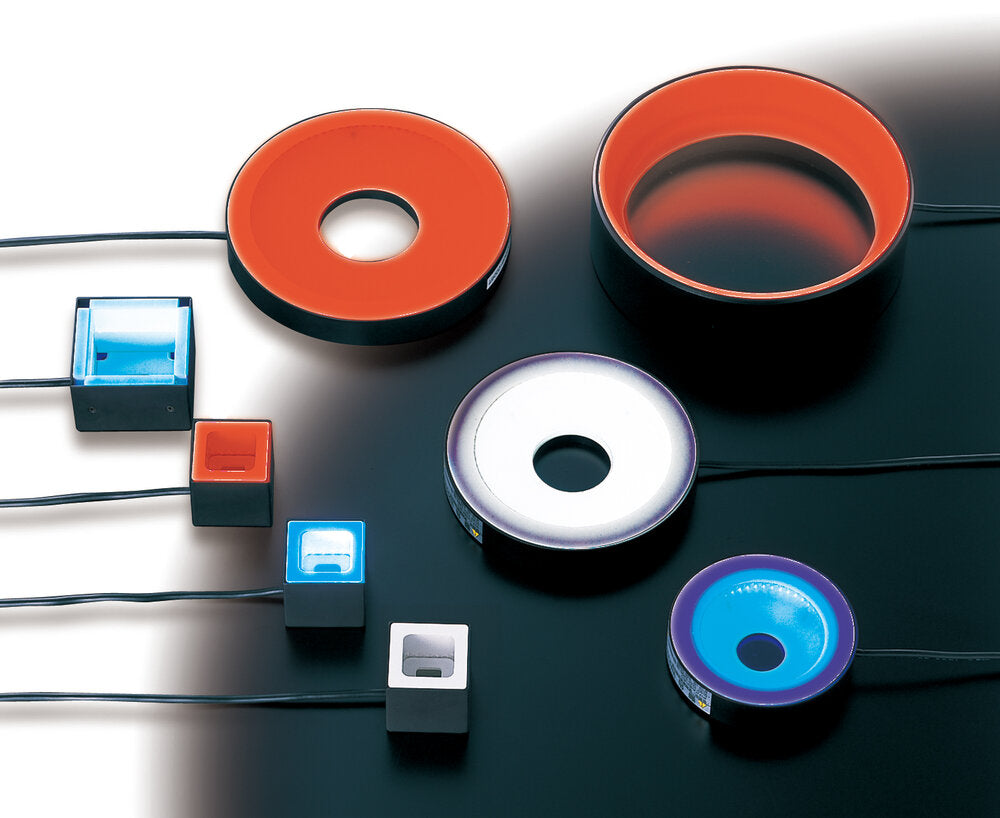

MSRL Series
MSRL-CR20 | Red | Max Rated Current (A) 0.32 | Internal Diameter: 20mm
MSRL-CB20 | Blue | Max Rated Current (A) 0.5 | Internal Diameter: 20mm
MSRL-CW20 | White | Max Rated Current (A) 0.5 | Internal Diameter: 20mm
MSRL-CR44 | Red | Max Rated Current (A) 0.57 | Internal Diameter: 44mm
MSRL-CB44 | Blue | Max Rated Current (A) 0.8 | Internal Diameter: 44mm
MSRL-CW44 | White | Max Rated Current (A) 0.8 | Internal Diameter: 44mm

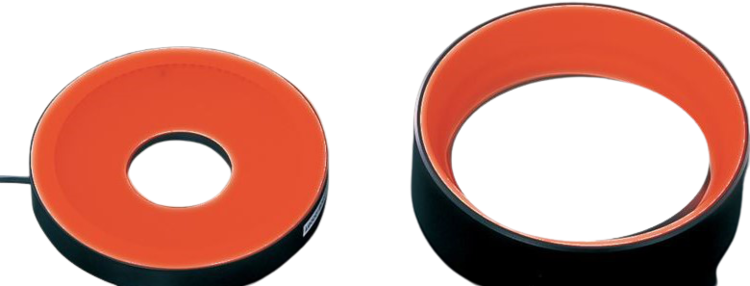

MSLL Series
MSLL-CR109 | Red | Max Rated Current (A) 0.62 | Internal Diameter: 109mm
MSLL-CW109 | White | Max Rated Current (A) 1.1 | Internal Diameter: 109mm
CV-FR Series
CV-FR-102X33R(-M12) | Red | Power (W) 1.2 | Internal Diameter: 33mm
CV-FR-102X33B(-M12) | Blue | Power (W) 3.3 | Internal Diameter: 33mm
CV-FR-102X33W(-M12) | White | Power (W) 3.2 | Internal Diameter: 33mm
CV-FR-125X44R(-M12) | Red | Power (W) 2.3 | Internal Diameter: 44mm
CV-FR-125X44B(-M12) | Blue | Power (W) 3.8 | Internal Diameter: 44mm
CV-FR-125X44W(-M12) | White | Power (W) 4 | Internal Diameter: 44mm

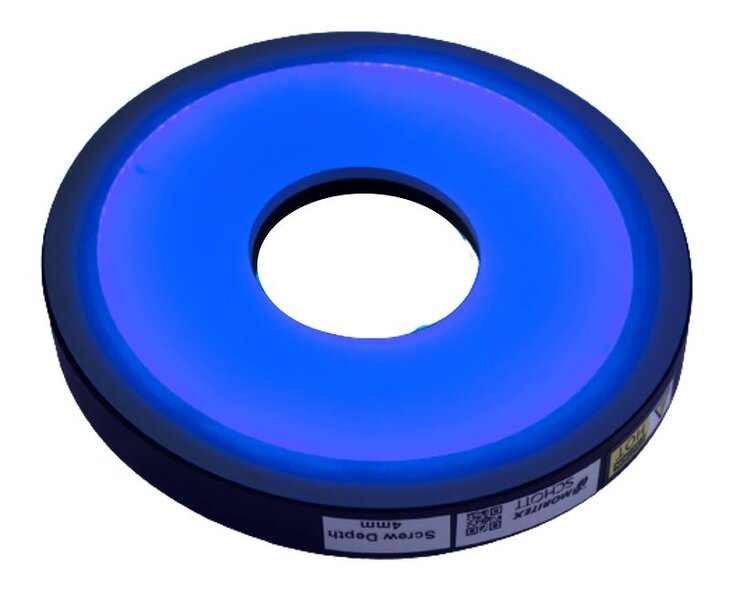

CV-DR Series
CV-DR-100X73R | Red | Power (W) 1.7 | Internal Diameter: 73mm
CV-DR-100X73B | Blue | Power (W) 5 | Internal Diameter: 73mm
CV-DR-100X73W | White | Power (W) 5.8 | Internal Diameter: 73mm
CV-DR-136X109R | Red | Power (W) 1.7 | Internal Diameter: 109mm
CV-DR-136X109B | Blue | Power (W) 8.6 | Internal Diameter: 109mm
CV-DR-136X109W | White | Power (W) 8.4 | Internal Diameter: 109mm
CV-DR-180X153R | Red | Power (W) 2.3 | Internal Diameter: 153mm
CV-DR-180X153B | Blue | Power (W) 10.3 | Internal Diameter: 153mm
CV-DR-180X153W | White | Power (W) 11.6 | Internal Diameter: 153mm
