Vitek VT-TNV6416E1-6T

$2,846.04 $0.00( / )
Shipping calculated at checkout.

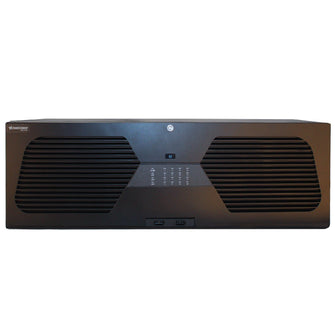

Transcendent 64 Channel 12 MegaPixel H.265 Real Time Enterprise Class Network Video Recorder

64CH ENTERPRISE LEVEL NVR 12MP/8MP/5MP/4MP/1080P/960P/720P 1920fps 640Mbps 6TB From 1TB to 160TB Configs, (16hdd Max - Supports 10TB* Drives), Raid 0,1,2,5,6 &10. GEN III Analytics (Facial/Target), 4K Output, HDMI, VGA, AUDIO, ALARM, PTZ, No PoE

Vendor: Vitek Product Type: PHYSICAL SKU: VT-TNV6416E1-6T Weight: 32.8 lb

Network Input  64 IP Channels up to 12 MegaPixel, 640MbPS

Video Output

HDMI 1 up to 3840 × 2160 @ 60fps
 HDMI 2-4 up to 1920 × 1080
 VGA up to 1920 × 1080

Recording Compression H.265+ / H.265S / H.265 / H.264

OS Embedded Linux

Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/ 720P/960H/D1/CIF

Audio Over IP Input, HDMI Audio Out 64 (Camera Dependent), YES

2-Way Audio / Local Output Local In / Out

Recording Streams  / FPS Dual Stream (CBR & VBR) / 30 (NTSC)

Recording Modes Manual / Timer / Motion / Sensor / Analytics

Simultaneous Playback, Search / Smart Search Max 16 CH, Time Sliced Image Search, Time/Calendar Search, Event (Motion, External Alarm), Tag Search

Intelligent Analytics Gen. III Face Detection, Target Counting, Intrusion, Region Entrance / Exit, Line Crossing, Scene Change, Video Blur

Face Detection / Recognition Capacity Up to 4 Standard (Non-Analytic Cameras), Det: 64 IP Cameras with FD / Recog: 16 IP Cameras with FR

Face Det.: Channels Database 64 CH., 32 Libraries (10,000 Pics), 36 pictures per second

Face Det.: Search by Picture Add, Modify, Delete and Search Face Pics (App, Web, Local PC)

Face Det.: Adding Face pics Resolution (128×128 – 1920×1080), jpeg below 70KB

Face Det.: Face Trace Map Resolution (2560×1920), jpeg below 512KB

Alarm Modes  Sensor, Motion, Video Loss, IP Conflict, Disk Error, Illegal Access, Network Disconnection

Alarm In / Out 24 Inputs / 8 Outputs

Alarm Triggering Record, Snap, PTZ Move, Alarm Out, E-mail

Network Interface RJ45 10 / 100 / 1000 Mbps × 2

Bit Rate (Per Camera) 512Kbps ~ 10 Mbps (Adjustable)

Total Bandwidth Display Priority 128Mbps / Network Priority 640Mbps

 Dual-stream Individ. Network Video Stream & Local Recording Stream, Set Separately

PTZ Preset Auto Cruise, up to 255 Presets and 8 Cruises

Network Protocols TCP/IP/UDP/DHCP/DNS/PPPOE/DDNS/Email/UPNP/NAT/ Telnet

External Interface / Reset USB 2.0 × 2, USB 3.0 × 1, RS 485 (Full Duplex), RS 232 / YES

Remote Viewing CMS / Web Browser / Mobile Platforms

Backup Network, USB

SATA HDD SATA x 16, max 10TB each (Total 160TB)

RAID 0, 1, 5, 6, 10

PTZ Protocol Through Network

USB USB 2.0 × 2 (for mouse and USB backup device) USB 3.0 × 1

Power Consumption / Supply 50w without HDD / ATX 300w

Working Environment 32°~122°F @ 10% ~ 90% RH

Dimensions (WxHxD) 17.20” × 19.02” × 5.63” (437mm×483mm×143mm)

Weight 22lbs (10kg) Net w/out HDD, 31lbs(14kg), Shippng w/out HDD
