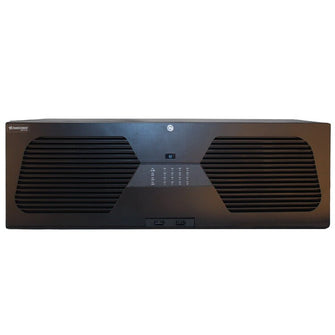

Vitek VT-TNV6416E1-128T

$11,155.56 $0.00( / )
Shipping calculated at checkout.

Transcendent 64 Channel 12 MegaPixel H.265 Real Time Enterprise Class Network Video Recorder

Transcendent 64 Channel 12 MegaPixel H.265 Real Time Enterprise Class Network Video Recorder
Vendor: Vitek Product Type: PHYSICAL SKU: VIT138 Weight: 28.0 lb

Network Input  64 IP Channels up to 12 MegaPixel, 640MbPS

Video Output

HDMI 1 up to 3840 × 2160 @ 60fps
 HDMI 2-4 up to 1920 × 1080
 VGA up to 1920 × 1080

Recording Compression H.265+ / H.265S / H.265 / H.264

OS Embedded Linux

Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/ 720P/960H/D1/CIF

Audio Over IP Input, HDMI Audio Out 64 (Camera Dependent), YES

2-Way Audio / Local Output Local In / Out

Recording Streams  / FPS Dual Stream (CBR & VBR) / 30 (NTSC)

Recording Modes Manual / Timer / Motion / Sensor / Analytics

Simultaneous Playback, Search / Smart Search Max 16 CH, Time Sliced Image Search, Time/Calendar Search, Event (Motion, External Alarm), Tag Search

Intelligent Analytics Gen. III Face Detection, Target Counting, Intrusion, Region Entrance / Exit, Line Crossing, Scene Change, Video Blur

Face Detection / Recognition Capacity Up to 4 Standard (Non-Analytic Cameras), Det: 64 IP Cameras with FD / Recog: 16 IP Cameras with FR

Face Det.: Channels Database 64 CH., 32 Libraries (10,000 Pics), 36 pictures per second

Face Det.: Search by Picture Add, Modify, Delete and Search Face Pics (App, Web, Local PC)

Face Det.: Adding Face pics Resolution (128×128 – 1920×1080), jpeg below 70KB

Face Det.: Face Trace Map Resolution (2560×1920), jpeg below 512KB

Alarm Modes  Sensor, Motion, Video Loss, IP Conflict, Disk Error, Illegal Access, Network Disconnection

Alarm In / Out 24 Inputs / 8 Outputs

Alarm Triggering Record, Snap, PTZ Move, Alarm Out, E-mail

Network Interface RJ45 10 / 100 / 1000 Mbps × 2

Bit Rate (Per Camera) 512Kbps ~ 10 Mbps (Adjustable)

Total Bandwidth Display Priority 128Mbps / Network Priority 640Mbps

 Dual-stream Individ. Network Video Stream & Local Recording Stream, Set Separately

PTZ Preset Auto Cruise, up to 255 Presets and 8 Cruises

Network Protocols TCP/IP/UDP/DHCP/DNS/PPPOE/DDNS/Email/UPNP/NAT/ Telnet

External Interface / Reset USB 2.0 × 2, USB 3.0 × 1, RS 485 (Full Duplex), RS 232 / YES

Remote Viewing CMS / Web Browser / Mobile Platforms

Backup Network, USB

SATA HDD SATA x 16, max 10TB each (Total 160TB)

RAID 0, 1, 5, 6, 10

PTZ Protocol Through Network

USB USB 2.0 × 2 (for mouse and USB backup device) USB 3.0 × 1

Power Consumption / Supply 50w without HDD / ATX 300w

Working Environment 32°~122°F @ 10% ~ 90% RH

Dimensions (WxHxD) 17.20” × 19.02” × 5.63” (437mm×483mm×143mm)

Weight 22lbs (10kg) Net w/out HDD, 31lbs(14kg), Shippng w/out HDD
