Vitek VT-TNR6480E1-64T

Vitek
|
VIT115
$5,511.11 $0.00( / )
Shipping calculated at checkout.

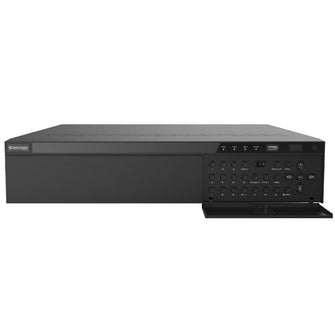

64 Channel 8 MegaPixel H.265 Real Time Network Video Recorder with 4K Output & Dual Ethernet Ports

64 Channel 8 MegaPixel H.265 Real Time Network Video Recorder with 4K Output & Dual Ethernet Ports
Vendor: Vitek Product Type: PHYSICAL SKU: VIT115 Weight: 20.0 lb

Video Inputs / Resolution 64 Channels Supporting up to 8 MegaPixels @ 30fps Max

Main Monitor Output HDMI × 2 : 1 × 3840 × 2160 / 1920 × 1080 / 1280 × 1024 , 1 × 1920 × 1080 / 1280 × 1024, VGA × 1: 1920 × 1080 / 1280 × 1024

Multi Operation Pentaplex: Live Display / Record / Playback / Backup / Remote Access

Recording 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P

Compression Standard H.265 / H.264

OS Embedded Linux

Audio 64 CH IPC Dependent

Local Audio In / Out IN: RCA × 1CH / OUT: RCA × 1CH

Two-Way Audio YES

Encode CBR/VBR

Quality Levels 11 (According to Bit Rate)

Recording Modes Manual / Timer / Motion / Sensor

File Management Reserving time, Redundancy, Dual stream recording

Local Playback 16 ch.

Search Time sliced image search, Time/Calendar search, Event (Motion, External alarm), Tag search

Supported Analytics Object Removal/Museum Search, Exception, Line Crossing, and Area Intrusion Detection

De-Warping Fish Eye 360º Camera De-Warping with Single Overall and 3-way Division

Alarm Modes Manual / Sensor / Motion / Exception

Alarm Inputs / Outputs 8 CH local alarm input, supporting IPC alarm input / 4 CH Output

Alarm Triggering Record / Snap / Preset / E-mail

Network Interface RJ45 10 / 100 / 1000 Mbps × 2

Bit Rate (Per Camera) 512Kbps ~ 10 Mbps (Adjustable)

Dual-stream Individual Network Video Stream and local recording stream, set separately

Network Protocol Up to 10 users online / iOS, Android

Network Web Client / Mobile Device OS Up to 10 users online / iOS, Android

PTZ Protocol Through Network or RS485 (Pelco D / Pelco P)

RS485 RS485 x 2  (for PTZ and Keyboard)

SATA HDD SATA × 8 (Max 10TB per HDD, 80TB total), e-SATA × 2

Disk Array RAID0, RAID1, RAID5, RAID6, RAID10

Local Backup U disk, USB mobile HDD

Network Backup YES

USB USB 2.0 × 2 (front panel, rear panel), USB × 3.0 × 1 (rear panel)

Remote Controller YES

Power Consumption / Supply ≤ 15W (Without HDD) / ATX 250W

Working Environment 14ºF~122ºF (-10º~50ºC) / 10~90% RH

Dimensions (WxHxD) 17.52” × 17.12” × 3.54” (W × D × H)
