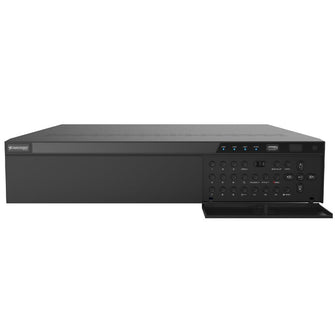

Vitek VT-TNR3216PF-6T

$1,222.22 $0.00( / )
Shipping calculated at checkout.

32 Channel 8 MegaPixel H.265 Real Time NVR with Facial Detection, De-Warping, and 4K Output

32 Channel 8 MegaPixel H.265 Real Time NVR with Facial Detection, De-Warping, and 4K Output
Vendor: Vitek Product Type: PHYSICAL SKU: VIT96 Weight: 9.0 lb

Video Input / Resolution 32 IP Channels up to 8 MegaPixel (4K)

Main Monitor Output 1 x 4K HDMI / 1 x 1080P VGA

Multi Operation Pentaplex: Live Display / Record / Playback / Backup / Remote Access

Recording Compression H.265 / H.264

OS Embedded Linux

Recording 960fps (30fps per channel)

Audio over IP Inputs 32 (1 Audio Channel per IP Camera over IP)

Local Audio In/Out IN: RCA x 1CH / OUT: RCA x 1CH

Two-Way Audio YES

Encode CBR

Quality Levels 11 level (According to Bit Rate)

Recording Modes Manual / Timer / Motion / Sensor

Local Playback 16CH

Face Detection Channels / Database 240 pictures / minute

Face Detection: Search by Picture Add, Modify, Delete and Search Face Pictures

Face Detection: Adding face pictures Resolution (64×64 – 1920×1080), jpg below 200KB

Face Detection: Face Trace Map Resolution (600×300-3840×2160), .jpg below 200KB

Image Dewarping De-Warp into 3 Separate Images

Search Time sliced image search, Time/Calendar search, Event (Motion, External alarm), Tag search

Alarm Modes Sensor, Motion, Video loss, IP conflict, Disk error, Illegal access, Network disconnection

Alarm Inputs / Output 16CH Local Input + 1 Channel per IP Camera / 4CH

Alarm Triggering Record, Snap, PTZ move, Alarm out, E-mail, etc

Network Interface RJ45 x 1

POE ports RJ45 x 16, with POE

PoE Standard 802.3af 15W max per port

Total PoE Budget 150W all ports

Bit Rate (Per Camera) 512Kbps ~ 10 Mbps (Adjustable)

Total Bandwidth 256Mbps Incoming / 256Mbps Outgoing

Dual-stream Individual Network Video Stream and local recording stream, set seperately

Network Protocols TCP/IP, UDP, DHCP, DNS, PPPOE, DDNS, Email, UPNP, NAT, Telnet

Remote Viewing CMS / Web Browser / Mobile Platforms

Remote Users 10 Simultaneous Online Users

Backup Network, USB

SATA HDD SATA x 8, max to 10TB each

RS485 RS485 x 2 (for PTZ and Keyboard)

PTZ Protocol Through Network or RS485 (Pelco D / Pelco P)

USB USB 2.0 x 1 + USB 3.0 x 1 (for mouse and USB backup device)

Power Consumption / Power Supply  ≤ 15W (Without HDD) / AC 110/220V (ATX 300W)

Working Environment 32°~122°F @ 10% ~ 90% RH

Weight 19.62lbs (8.9kg)

Dimensions (WxHxD) 16.93” x 3.54″ x 17.72″ (430 x 90 x 450mm)

Lead time varies by product. Standard non-back-order items ship within 1-7 days. Items in stock at our Sacramento warehouse ship on the same day that the order is placed. Back-ordered item lead times vary and are based on current production backlogs and existing open orders. After receipt of order you will be contacted with a shipping timeline. Please look out for a call or email from us about your ship date.

Note: We do ship internationally, shipping terms are INCO TERM EX WORKS. Customer is responsible for any applicable duties, taxes or fees that the destination country may apply.

*Note, if the order is resale or government tax exempt, contact us to place the order directly with our sales staff and provide your tax exemption form.
