Vitek VT-TNR1646PF-12T

Vitek
|
VIT86
$1,288.89 $0.00( / )
Shipping calculated at checkout.

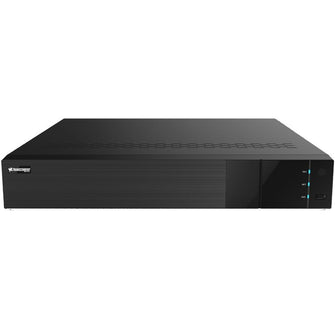

16 Channel 8 MegaPixel H.265 Network Video Recorder with 4K Output & 16 Port PoE Switch

16 Channel 8 MegaPixel H.265 Network Video Recorder with 4K Output & 16 Port PoE Switch
Vendor: Vitek Product Type: PHYSICAL SKU: VIT86 Weight: 9.0 lb

Video Input / Resolution 16 IP Channels up to 8 MegaPixel

Main Monitor Output 1 x 4K HDMI / 1 x 1080P VGA

Multi Operation Pentaplex: Live Display / Record / Playback / Backup / Remote Access

Recording Compression H.265 / H.264

OS Embedded Linux 480fps (30fps per channel)

Audio over IP Inputs 16 (Camera dependent)

Local Audio In/Out RCA x 1CH / OUT: RCA x 1CH

Two-Way Audio YES

Encode CBR / VBR

Quality Levels 11 level (According to Bit Rate)

Recording Modes Manual / Timer / Motion / Sensor

File Management Reserving time, Redundancy, Dual stream recording

Local Playback 16CH

Gen. III Advanced Analytics Object Removal/Museum Search, Line Crossing, Exception and Area Intrusion Detection (Camera Dependent)

Face Detection Channels / Database 240 pictures / minute

Face Detection: Search by Picture Add, Modify, Delete and Search Face Pictures

Face Detection: Adding face pictures Resolution (64×64 – 1920×1080), jpeg below 200KB

Face Detection: Face Trace Map Resolution (600×300-3840×2160), jpeg below 200KB

360° Camera De-Warping Multiple Views include 360° Overview, Double 180° Panorama View, Quad View, Overview + 3 Views, and Single View

Search Time sliced image search, Time/Calendar search, Event (Motion, External alarm), Tag search

Alarm Modes Sensor, Motion, Video loss, IP conflict, Disk error, Illegal access, Network disconnection

Alarm Inputs / Output 8CH / 4CH / Record, Snap, PTZ move, Alarm out, E-mail, etc

Network Interface RJ45 x 1 512Kbps ~ 10 Mbps (Adjustable)

PoE Ports / Standard / Total PoE Budget RJ45 x 16, with POE / 802.3af 15W max per port  / 150W all ports

Bit Rate (Per Camera) 512Kbps ~ 10 Mbps (Adjustable)

Total Bandwidth 256Mbps Incoming / 256Mbps Outgoing

Dual-stream Individual Network Video Stream and local recording stream, set seperately

Network Protocols TCP/IP, UDP, DHCP, DNS, PPPOE, DDNS, Email, UPNP, NAT, Telnet

Internet-streaming Total 95 task resource (Local+Remote) 16 CH IE playback

Remote Viewing CMS / Web Browser / Mobile Platforms

Remote Users 10 Simultaneous Online Users

Backup Network, USB

SATA HDD SATA x 4, max to 10TB each (40TB Total)

RS485 RS485 x 2 (for PTZ and Keyboard)

PTZ Protocol Through Network or RS485 (Pelco D / Pelco P)

USB USB 2.0 x 1 + USB 2.0 x 1 (for mouse and USB backup device)

Power Consumption / Supply 15W (Without HDD) / AC 110/220V (ATX 300W)

Working Environment 32°~122°F @ 10% ~ 90% RH

Dimensions (Metric) / Weight (Metric) 17.3 x 15.4 x 2.8” (440 x 390 x 77mm) / 15.19lbs (6.89kg)
