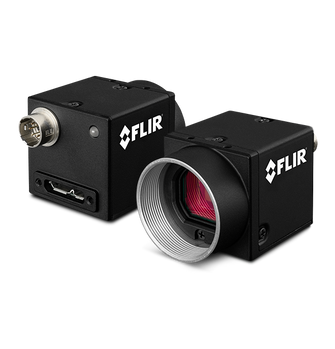

Teledyne FLIR BFS-U3-120S4M-CS
12 MP 31 FPS, Sony IMX226, Monochrome
Teledyne FLIR BFS-U3-120S4M-CS 12 MP 31 FPS, Sony IMX226, Monochrome
Part Number
BFS-U3-120S4M-CS
Resolution
4000 x 3000
Megapixels
12
Max Frame Rate Standard
31
Sensor Model
Sony IMX226
Pixel Size
1.85
Sensor Type
CMOS
Sensor Format
1/1.7"
Shutter type
Rolling shutter with global reset
Spectrum
Mono
Optical Filter
None
Lens Mount
CS-mount
Synchronization
Software trigger, hardware trigger, action command
Data Interface
USB 3.1 Gen 1
Features
Acquisition Modes
Continuous / Single Frame / Multi Frame
Exposure Control
Hardware trigger, programmable via camera API, automatic
Exposure Range
10 µs to 30 seconds
Flash Memory
6 MB non-volatile memory
Gain Control
Manual, automatic (AGC)
Image Buffer
240 MB
Image Processing
Gamma, lookup table, and sharpness
Partial Image Modes
Pixel binning, decimation, ROI
User Sets
2 user configuration sets for custom camera settings
Performance
Absolute Sensitivity Threshold (y)
5.09
Dynamic Range dB
69.64
Gain Range
0 dB to 27 dB
QE (Mono)
73.27 @530 nm
Saturation Capacity (e-)
11323
Temporal Dark Noise (Read Noise)
3.23
Physical
Auxiliary Output
3.3 V, 120 mA maximum
Connector
USB3 Micro-B | Hirose HR10A-7R-6PB
Digitization Bit Depth (ADC)
10-bit, 12-bit
Dimensions [W x H x L]
29 mm × 29 mm × 30 mm
Mass
36 g
Non-Isolated I/O Ports
1 bi-directional, 1 input
Operating Humidity
20 to 80% (no condensation)
Operating Temperature
0° to 50°C (ambient)
Opto-isolated I/O Ports
1 input, 1 output
Power Consumption [Maximum]
3 W
Power Requirements
8-24 V via GPIO or 5 V via USB3
Serial Port
Supported
Storage Humidity
30 to 95% (no condensation)
Storage Temperature
-30° to 60°C
Lead Times Vary, subject to existing open orders & stock availability.
Full Manufacturer Warranty
Contact us>> for special pricing over 5 pieces.
Features~
Choice of CMOS global shutter, polarization, and high-sensitivity BSI sensors. Color transformation tools ensure true- to-life color. Advanced auto-algorithms or precise manual control.
Support for a wide range of operating systems and host system hardware architectures. Easily switch to board level models for embedded systems. Simplified product iteration with consistent form factor across sensor sizes.
Compatible with third party software and hardware. Less code-writing required using powerful on-camera features. Quickly build custom applications with rich sample code and descriptive API logging.
