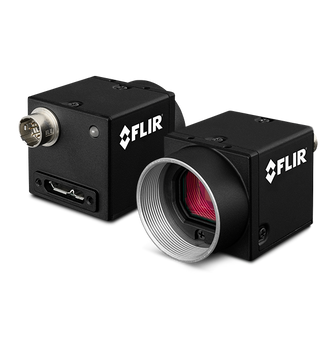

Teledyne FLIR BFS-U3-04S2M-CS

Teledyne Flir
|
BFS-U3-04S2M-CS
$324.00 $0.00( / )
Shipping calculated at checkout.

0.4 MP, 522 FPS, Sony IMX287, Monochrome

Teledyne FLIR BFS-U3-04S2M-CS 0.4 MP, 522 FPS, Sony IMX287, Monochrome

Part Number
BFS-U3-04S2M-CS
Resolution
720 x 540
Megapixels
0.4
Max Frame Rate Standard
522
Sensor Model
Sony IMX287
Pixel Size
6.9
Sensor Type
CMOS
Sensor Format
1/2.9"
Shutter type
Global shutter
Spectrum
Mono
Optical Filter
None
Lens Mount
CS-mount
Synchronization
Software trigger, hardware trigger, action command
Data Interface
USB 3.1 Gen 1

Features

Acquisition Modes
Continuous / Single Frame / Multi Frame
Exposure Control
Hardware trigger, programmable via camera API, automatic
Exposure Range
4 µs to 30 seconds
Flash Memory
6 MB non-volatile memory
Gain Control
Manual, automatic (AGC)
Image Buffer
240 MB
Image Processing
Gamma, lookup table, and sharpness
Partial Image Modes
Pixel binning, decimation, ROI
User Sets
2 user configuration sets for custom camera settings

Performance

Absolute Sensitivity Threshold (y)
6.81
Dynamic Range dB
74.43
Gain Range
0 db to 47 dB
QE (Mono)
61.82 @530 nm
Saturation Capacity (e-)
22187
Temporal Dark Noise (Read Noise)
3.71

Physical

Auxiliary Output
3.3 V, 120 mA maximum
Connector
USB3 Micro-B | Hirose HR10A-7R-6PB
Digitization Bit Depth (ADC)
8-bit, 10-bit, 12-bit
Dimensions [W x H x L]
29 mm × 29 mm × 30 mm
Mass
36 g
Non-Isolated I/O Ports
1 bi-directional, 1 input
Operating Humidity
20 to 80% (no condensation)
Operating Temperature
0° to 50°C (ambient)
Opto-isolated I/O Ports
1 input, 1 output
Power Consumption [Maximum]
3 W
Power Requirements
8-24 V via GPIO or 5 V via USB3
Serial Port
Supported
Storage Humidity
30 to 95% (no condensation)
Storage Temperature
-30° to 60°C
Vendor: Teledyne Flir Product Type: USB Camera SKU: BFS-U3-04S2M-CS Weight: 1.0 lb

Lead Times Vary, subject to existing open orders & stock availability.

Full Manufacturer Warranty

Contact us>> for special pricing over 5 pieces.

Features~

  • Choice of CMOS global shutter, polarization, and high-sensitivity BSI sensors. Color transformation tools ensure true- to-life color. Advanced auto-algorithms or precise manual control.

  • Support for a wide range of operating systems and host system hardware architectures. Easily switch to board level models for embedded systems. Simplified product iteration with consistent form factor across sensor sizes.

  • Compatible with third party software and hardware. Less code-writing required using powerful on-camera features. Quickly build custom applications with rich sample code and descriptive API logging.
