Fujifilm HF818-12M

Fujifilm
|
HF818-12M
$573.00 $0.00( / )
Shipping calculated at checkout.

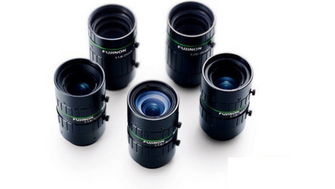

Fujinon 12 Megapixel 2/3" Format Lens

Categories:

Fujinon 12 Megapixel 2/3" Format Lens

The Fujifilm 12M series, is an ultra compact 12Megapixel lens with 2.1?m pixel pitch performance. All models are designed for "4DHR", Anti Shock & Vibration, and low-distortion.

FUJINON HF-12M features high performance "4D HR" to minimize such degradation. It maintains a highly consistent image sharpness from the center to the edges, while mitigating degradation of resolution caused by changes in the shooting distance or aperture. This enables consistent delivery of high-resolution images under a wide variety of installation and shooting conditions.

When the iris (aperture) is set at the orange F4 marker on the lens barrel, the HF-12M series delivers the resolving power greater than 2.1µm pixel pitch on a 2/3-inch sensor (equivalent to 12 megapixels)



Focal length [mm]8
Iris range (F. no)F1.8-F22
Angle of view56.9°×43.9° (2/3")
Working Distance*2 [mm]∞‐100
Operation of focusManual
Operation of irisManual
Filter thread [mm]M30.5 x 0.5
MountC-mount
Weight (approx.) [g]95
Sensor size(std.)*22/3"(2.1μm)
Sensor size (max.)*32/3"(2.1μm)
TV distortion [%]-1.03
Dimension [mm]Φ33×48.5
