Moritex Telecentric Lenses
The Moritex Telecentric lens series feature high contrast, high resolution and low distortion imaging, with optional integrated coaxial illumination with hot spot reduction techniques.
There are various configurations listed below with differing resolution, magnification, and sizes.
The zoom lens series features uniform episcopic coaxial illumination function that covers the entire field of view, while the high resolution large format series features compatibility with 25 megapixel and 29 megapixel cameras.
SOD-X High Magnification Machine Micro Lens

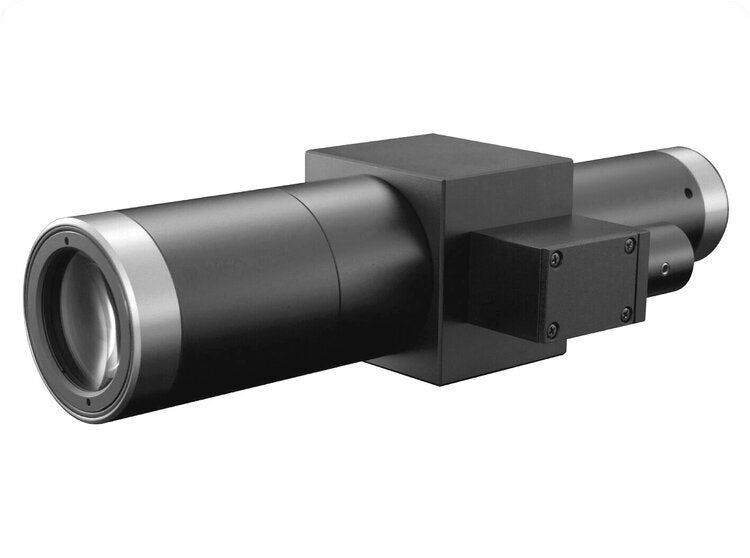

SOD-10X | High Magnification Machine Micro Lenses
10× optical magnification
Capable of 15× and 20× with rear converter lenses
High NA of 0.23
Long WD, 55.2 mm
Microscope class resolution, 1.5 μm
Compact, integrated design
SOD-20X-VI | High Magnification Machine Micro Lenses
High optical magnification: 20×
Capable of 30× and 40× with rear converter lenses
Long WD, 37.5 mm
High NA of 0.35
Microscope class resolution, 1 μm
Variable iris
Compact, integrated design
MML-SR Series
WD=65mm | Designed for 1.1” 3.5μm sensor
MML1-SR65DVI-18C 1 Magnification x, 65mm WD, IF 18.5
MML2-SR65DVI-18C 2 Magnification x, 65mm WD, IF 18.5
MML2-SR65VI-18C 2 Magnification x, 65mm WD, IF 18.5
WD=110mm | Designed for 1.1” 3.5μm sensor

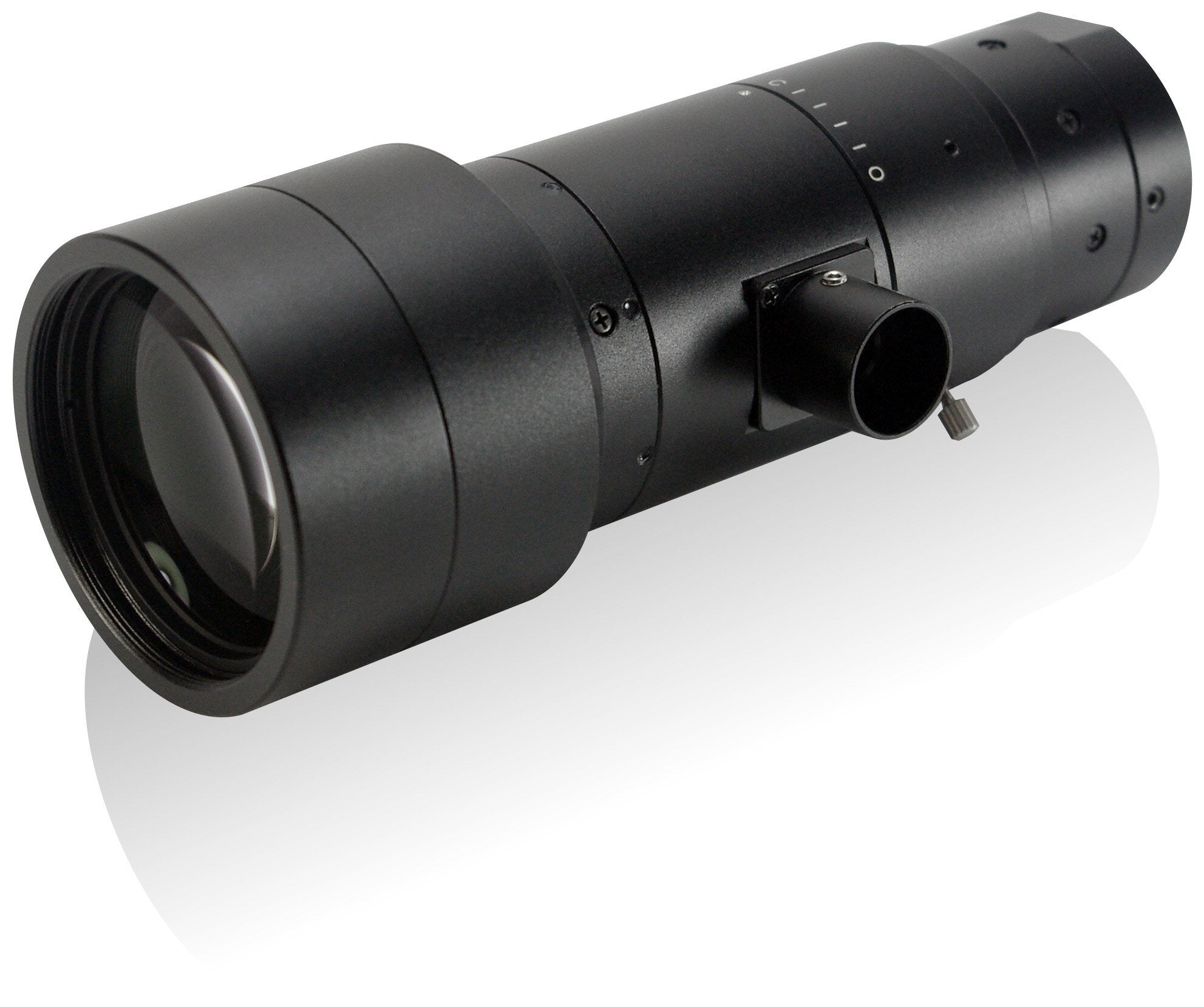

MML075-SR110DVI-18C 0.75 Magnification x, 110 mm WD, IF 18.5(1.1")
WD=130mm | Designed for 1.1” 3.5μm sensor
MML0275-SR130VI-18C 0.275 Magnification x, 130 mm WD, IF 18.5 (1.1")

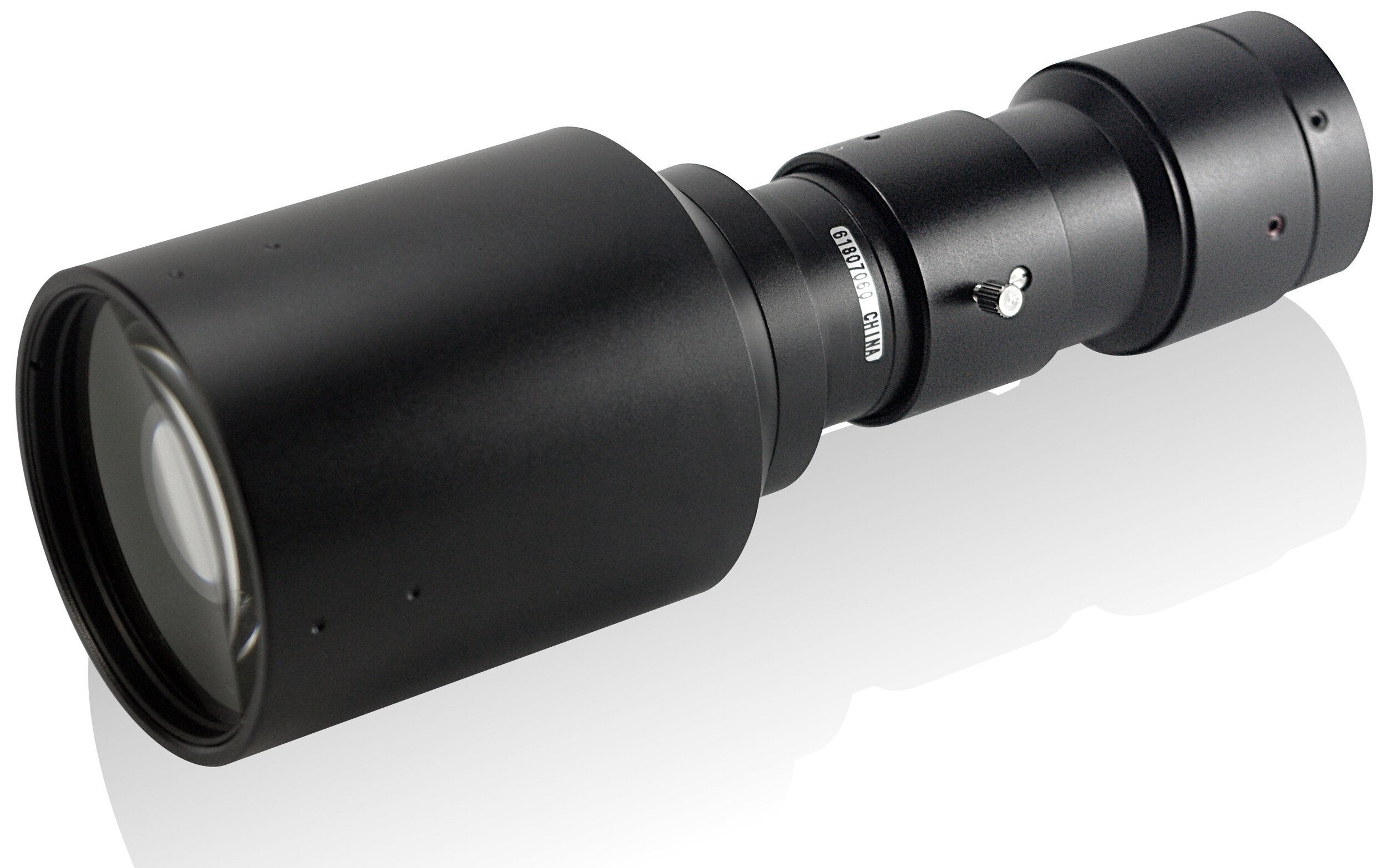

MML044-SR130VI-18C 0.44 Magnification x, 130 mm WD, IF 18.5(1.1")

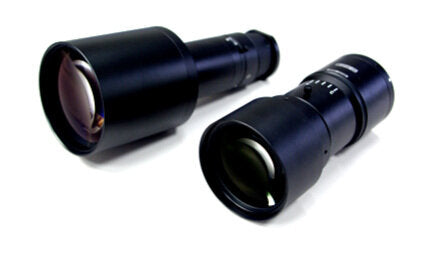

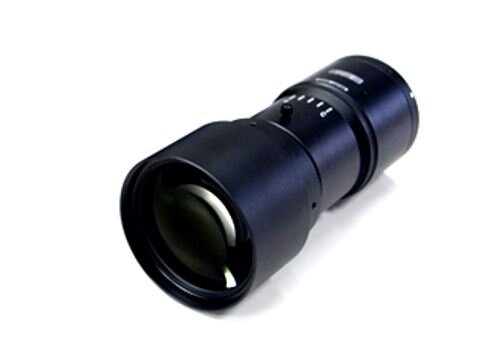

MML-HR High Resolution Series
MML-HR35F | Designed for 25 Megapixel Camera
MML1-HR130VI-35F 1 Magnification x, 132mm WD, IF 35
MML1.5-HR110VI-35F 1 Magnification x, 109mm WD, IF 35
MML-HR43F | Designed for 29 Megapixel Camera
MML2-HR110DVI-43F 2 Magnification x, 110 mm WD, IF 43.5
MML3-HR110DVI-43F 3 Magnification x, 110 mm WD, IF 43.5
MML2-HR110VI-43F 3 Magnification x, 110 mm WD, IF 43.5
MML-HR28F | Designed for 3.5μm sensor
MML037-HR220DVI-28F 0.37 Magnification x, 220 mm WD, IF 28.5
MML055-HR220DVI-28F 0.55 Magnification x, 220 mm WD, IF 28.5

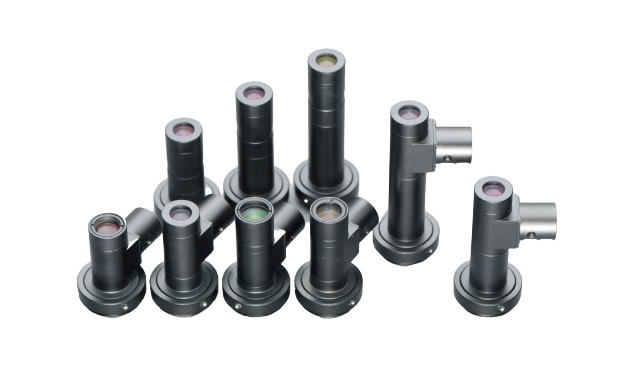

MML-ST Standard Series
MML-ST | WD=40mm
MML1-ST40D 1.00±5% Magnification, WD 40mm
MML1-ST40 1.00±5% Magnification, WD 40mm
MML1.5-ST40D 1.50±5% Magnification, WD 40.2mm
MML1.5-ST40 1.50±5% Magnification, WD 40.2mm
MML2-ST40D 2.00±5% Magnification, WD 40.1mm
MML2-ST40 2.00±5% Magnification, WD 40.1mm
MML3-ST40D 3.00±5% Magnification, WD 37.9mm
MML3-ST40 3.00±5% Magnification, WD 37.9mm
MML4-ST40D 4.00±5% Magnification, WD 40.9mm
MML4-ST40 4.00±5% Magnification, WD 40.9mm
MML6-ST40D 6.00±5% Magnification, WD 40.4mm
MML6-ST40 6.00±5% Magnification, WD 40.4mm
MML8-ST40D 8.00±5% Magnification, WD 40mm
MML8-ST40 8.00±5% Magnification, WD 40mm
MML-ST | WD=65mm
MML08-ST65D 0.80±5% Magnification, WD 65mm
MML08-ST65 0.80±5% Magnification, WD 65mm
MML1-ST65D 1.00±5% Magnification, WD 65.1mm
MML1-ST65 1.00±5% Magnification, WD 65.1mm
MML1.5-ST65D 1.50±5% Magnification, WD 65mm
MML1.5-ST65 1.50±5% Magnification, WD 65mm
MML2-ST65D 2.00±5% Magnification, WD 65mm
MML2-ST65 2.00±5% Magnification, WD 65mm
MML4-ST65D 4.00±5% Magnification, WD 65mm
MML4-ST65 4.00±5% Magnification, WD 65mm
MML6-ST65D 6.00±5% Magnification, WD 65mm
MML-ST | WD=65mm
MML6-ST65 6.00±5% Magnification, WD 65mm
MML2-ST65DS 2.00±5% Magnification, WD 65mm
MML2-ST65S 2.00±5% Magnification, WD 65mm
MML3-ST65DS 3.00±5% Magnification, WD 66mm
MML3-ST65S 3.00±5% Magnification, WD 66mm
MML4-ST65DS 4.00±5% Magnification, WD 65mm
MML4-ST65S 4.00±5% Magnification, WD 65mm
MML6-ST65DS 6.00±5% Magnification, WD 65.3mm
MML6-ST65S 6.00±5% Magnification, WD 65.3mm
MML8-ST65DS 8.00±5% Magnification, WD 64.9mm
MML8-ST65S 8.00±5% Magnification, WD 64.9mm
MML-ST | WD=110mm
MML08-ST110D 0.80±5% Magnification, WD 110mm
MML08-ST110 0.80±5% Magnification, WD 110mm
MML1-ST110D 1.00±5% Magnification, WD 113mm
MML1-ST110 1.00±5% Magnification, WD 113mm
MML2-ST110D 2.00±5% Magnification, WD 110mm
MML2-ST110 2.00±5% Magnification, WD 110mm
MML2-ST110DS 2.00±5% Magnification, WD 112mm
MML2-ST110S 2.00±5% Magnification, WD 112mm
MML3-ST110DS 3.00±5% Magnification, WD 108.3mm
MML3-ST110S 3.00±5% Magnification, WD 108.3mm
MML4-ST110D 4.00±5% Magnification, WD 110.9mm
MML4-ST110 4.00±5% Magnification, WD 110.9mm
MML6-ST110D 6.00±5% Magnification, WD 109.8mm
MML6-ST110 6.00±5% Magnification, WD 109.8mm
MML8-ST110D 8.00±5% Magnification, WD 109.4mm
MML8-ST110 8.00±5% Magnification, WD 109.4mm
MML-ST | WD=150mm
MML08-ST170D 0.80±5% Magnification, WD 172.9mm
MML08-ST170 0.80±5% Magnification, WD 172.9mm
MML1-ST150D 1.00±5% Magnification, WD 156mm
MML1-ST150 1.00±5% Magnification, WD 156mm
MML-ST | WD=300mm
MML05-ST300DVI 0.50±5% Magnification, WD 348mm
MML1-ST300D 1.0±5% Magnification, WD 305mm

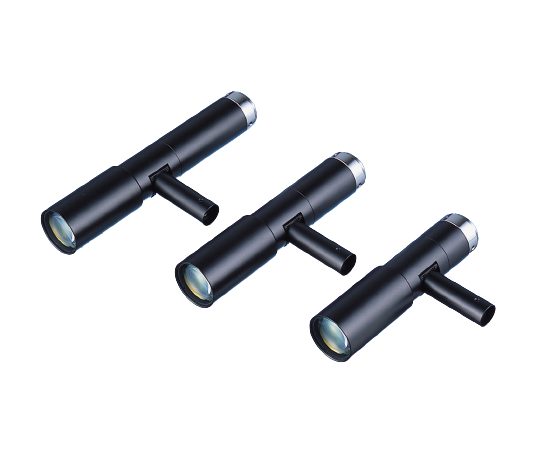

MML-NIR Near-Infrared Series
MML-NIR | Telecentric Near-Infrared
ML4-80D-IR Coaxial Illumination ○ | Magnification 4 | WD 82.4mm
ML6-80D-IR Coaxial Illumination ○ | Magnification 6 | WD 81.5mm
ML8-80D-IR Coaxial Illumination ○ | Magnification 8 | WD 81mm

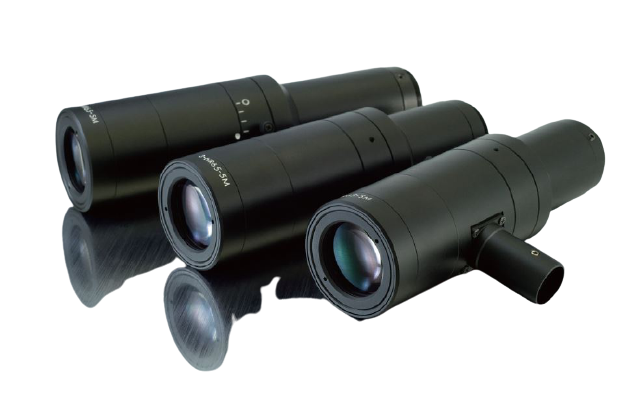

MML-HR 5 Megapixel Series
MML-HR | 5 Megapixel, 3.5 μm sensor
MML03-HR65D-5M Coaxial Illumination ○ | Magnification 0.30±5% | WD 65.1mm
MML03-HR65-5M Coaxial Illumination - | Magnification 0.30±5% | WD 65.1mm
MML-HR | 5 Megapixel, 3.5 μm sensor
MML05-HR65DVI-5M Coaxial Illumination ○ | Magnification 0.50±5% | WD 65.3mm
MML05-HR65VI-5M Coaxial Illumination - | Magnification 0.50±5% | WD 65.3mm
MML1-HR65DVI-5M Coaxial Illumination ○ | Magnification 1.00±5% | WD 65mm
MML1-HR65VI-5M Coaxial Illumination - | Magnification 1.00±5% | WD 65mm
MML2-HR65DVI-5M Coaxial Illumination ○ | Magnification 2.00±5% | WD 65mm
MML2-HR65VI-5M Coaxial Illumination - | Magnification 2.00±5% | WD 65mm
MML3-HR65DVI-5M Coaxial Illumination ○ | Magnification 3.00±5% | WD 65.1mm
MML3-HR65VI-5M Coaxial Illumination - | Magnification 3.00±5% | WD 65.1mm
MML4-HR65VI-5M Coaxial Illumination - | Magnification 4.00±5% | WD 65mm
MML4-HR65dVI-5M Coaxial Illumination ○ | Magnification 4.00±5% | WD 65mm
MML-HR | 5 Megapixel, 3.5 μm sensor
MML014-HR110D-5M Coaxial Illumination ○ | Magnification 0.14±5% | WD 110mm
MML03-HR110D-5M Coaxial Illumination ○ | Magnification 0.30±5% | WD 110mm
MML03-HR110-5M Coaxial Illumination - | Magnification 0.30±5% | WD 110mm

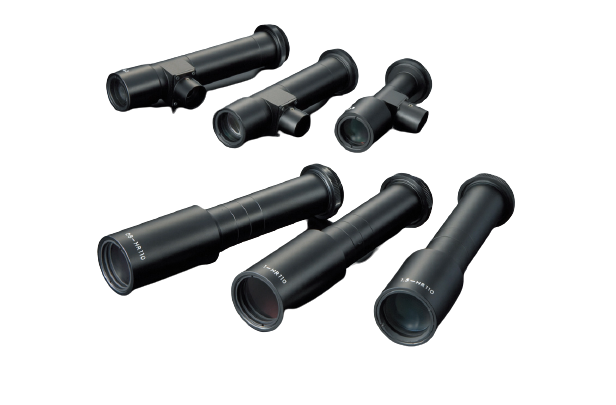

MML-HR High Resolution Fixed Mag Series
MML-HR | WD=65mm
MML05-HR65D Coaxial Illumination ○ | 0.5±5% Magnification, WD 65.3mm
MML05-HR65 Coaxial Illumination - | 0.5±5% Magnification, WD 65.3mm
MML08-HR65D Coaxial Illumination ○ | 0.8±5% Magnification, WD 65mm
MML08-HR65 Coaxial Illumination - | 0.8±5% Magnification, WD 65mm
MML1-HR65D Coaxial Illumination ○ | 1.00±5% Magnification, WD 65mm
MML1-HR65 Coaxial Illumination - | 1.00±5% Magnification, WD 65mm
MML1.5-HR65D Coaxial Illumination ○ | 1.50±5% Magnification, WD 65.1mm
MML1.5-HR65 Coaxial Illumination - | 1.50±5% Magnification, WD 65.1mm
MML2-HR65D Coaxial Illumination ○ | 2.00±5% Magnification, WD 65mm
MML2-HR65 Coaxial Illumination - | 2.00±5% Magnification, WD 65mm
MML4-HR65D Coaxial Illumination ○ | 4.00±5% Magnification, WD 65mm
MML4-HR65 Coaxial Illumination - | 4.00±5% Magnification, WD 65mm
MML6-HR65D Coaxial Illumination ○ | 6.00±5% Magnification, WD 65mm
MML6-HR65 Coaxial Illumination - | 6.00±5% Magnification, WD 65mm
MML-HR | WD=65mm Variable Iris
MML4-HR65D-VI Coaxial Illumination ○ | Magnification 4.0±5% | WD 65mm
MML6-HR65D-VI Coaxial Illumination ○ | Magnification 6.0±5% | WD 65mm
MML-HR | WD=110mm
MML05-HR110D Coaxial Illumination ○ | 0.5±5% Magnification, WD 110mm
MML05-HR110 Coaxial Illumination - | 0.5±5% Magnification, WD 110mm
MML08-HR110D Coaxial Illumination ○ | 0.8±5% Magnification, WD 110mm
MML08-HR110 Coaxial Illumination - | 0.8±5% Magnification, WD 110mm
MML1-HR110D Coaxial Illumination ○ | 1.00±5% Magnification, WD 110mm
MML1-HR110 Coaxial Illumination - | 1.00±5% Magnification, WD 110mm
MML1.5-HR110D Coaxial Illumination ○ | 1.50±5% Magnification, WD 110mm
MML1.5-HR110 Coaxial Illumination - | 1.50±5% Magnification, WD 110mm
MML2-HR110D Coaxial Illumination ○ | 2.00±5% Magnification, WD 110mm
MML2-HR110 Coaxial Illumination - | 2.00±5% Magnification, WD 110mm
MML4-HR110D Coaxial Illumination ○ | 4.00±5% Magnification, WD 110mm
MML6-HR110D Coaxial Illumination ○ | 6.00±5% Magnification, WD 65mm
MML-HR | WD=110mm
MML1-HR110DVI-16C Magnification x 1, WD 110mm, IF 16.5
MML1.5-HR110DVI-16C Magnification 1.5, WD 110mm, IF 16.5
MML-HR | WD=220mm
MML08-HR255 Coaxial Illumination - | 0.8±3% Magnification, WD 255.7mm
MML08-HR255D Coaxial Illumination ○ | 0.8±3% Magnification, WD 255.7mm
MML1-HR244 Coaxial Illumination - | 1.0±3% Magnification, WD 244mm
MML1-HR244D Coaxial Illumination ○ | 1.0±3% Magnification, WD 244mm
MML2-HR220D Coaxial Illumination ○ | 2.0±3% Magnification, WD 220.6mm
MML4-HR220D Coaxial Illumination ○ | 4.00±3% Magnification, WD 221.4mm
MML6-HR220D Coaxial Illumination ○ | 6.0±3% Magnification, WD 220mm
MML8-HR220D Coaxial Illumination ○ | 8.0±3% Magnification, WD 220mm
MML Fixed Magnification Series
MML | WD=110mm
MML018-110D Magnification 0.18, WD 110.4mm, Coaxial Illumination
MML018-110 Magnification 0.18, WD 110.4mm, Coaxial Illumination
MML | WD=200mm
MML02-220D Magnification 0.2, WD 222mm, Coaxial Illumination
MML Zoom Lens Series
MML Zoom | WD=70.9mm

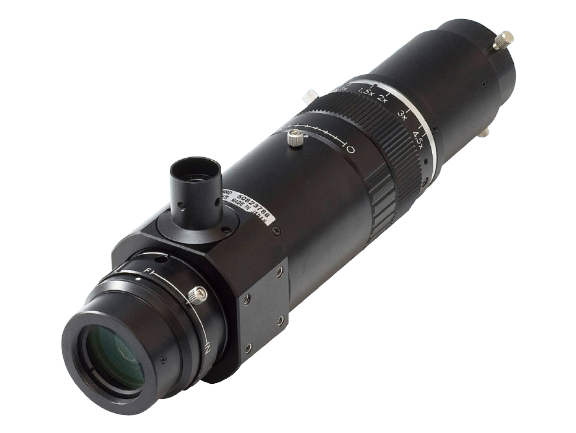

ML-Z07545HR Magnification 0.75-4.5, Manual Zoom, Coaxial Illumination
ML-Z07545HRD Magnification 0.75-4.5, Manual Zoom, Coaxial Illumination
MML Zoom | WD=90mm
ML-Z07545 Magnification 0.75-4.5, Manual Zoom, Coaxial Illumination
ML-Z07545D Magnification 0.75-4.5, Manual Zoom, Coaxial Illumination
