Narrow Angle Backlights

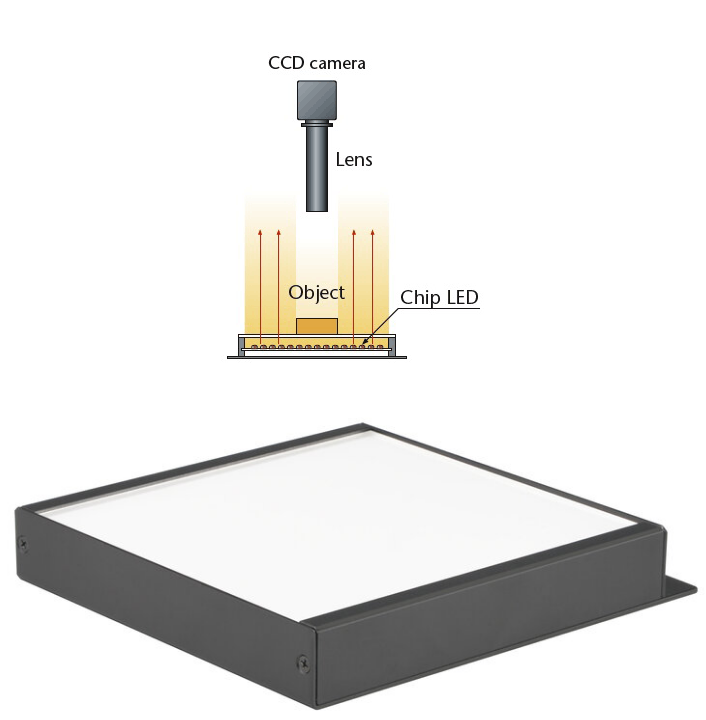

The Moritex CV-NFL Narrow Angle Backlights provide higher directivity than standard backlights, resulting in reduction of wraparound light to work piece sides. Recommended for use with the Moritex Bi-Telecentric series lenses, it is also used in imaging applications and silhouette inspection.

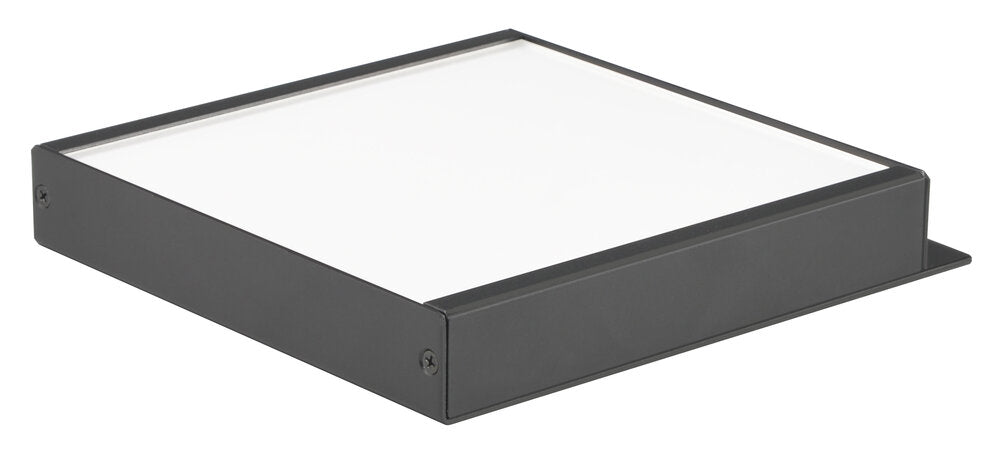

CV-NFL Series
CV-NFL-27X27G | Green | Power (W) 1.7 | Lighting Dimension 27mm x 27mm
CV-NFL-27X27W | White | Power (W) 1.7 | Lighting Dimension 27mm x 27mm
CV-NFL-51X51G | Green | Power (W) 2.9 | Lighting Dimension 51mm x 51mm
CV-NFL-51X51W | White | Power (W) 2.9 | Lighting Dimension 51mm x 51mm
CV-NFL-63X60G | Green | Power (W) 3.4 | Lighting Dimension 63mm x 60mm
CV-NFL-63X60W | White | Power (W) 3.4 | Lighting Dimension 63mm x 60mm
CV-NFL-83X75G | Green | Power (W) 5.8 | Lighting Dimension 83mm x 75mm
CV-NFL-83X75W | Whiter | Power (W) 5.8 | Lighting Dimension 83mm x 75mm
CV-NFL-100X96G | Green | Power (W) 9.9 | Lighting Dimension 100mm x 96mm
CV-NFL-100X96W | White | Power (W) 9.9 | Lighting Dimension 100mm x 96mm
CV-NFL-150X146G | Green | Power (W) 21.7 | Lighting Dimension 150mm x 146.5mm
CV-NFL-150X146W | White | Power (W) 21.7 | Lighting Dimension 150mm x 146.5mm
CV-NFL-230X230G | Green | Power (W) 24.4 | Lighting Dimension 230mm x 230mm
CV-NFL-230X230W | White | Power (W) 24.4 | Lighting Dimension 230mm x 230mm
