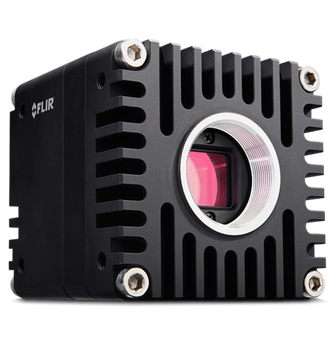

Teledyne FLIR ORX-10GS-32S4M-C

Teledyne FLIR
|
ORX-10GS-32S4M-C
$1,614.00 $0.00( / )
Shipping calculated at checkout.

3.2 MP, 216 FPS, Sony IMX252, Monochrome

Teledyne FLIR ORX-10GS-32S4M-C 3.2 MP, 216 FPS, Sony IMX252, Monochrome

Part Number
ORX-10GS-32S4M-C
Resolution
2048 × 1536
Megapixels
3.2
Max Frame Rate Standard
216
Sensor Model
Sony IMX252
Pixel Size
3.45
Sensor Type
CMOS
Sensor Format
1/1.8"
Shutter type
Global shutter
Spectrum
Mono
Optical Filter
None
Lens Mount
C-mount
Synchronization
Software trigger, hardware trigger, action command
Data Interface
Gigabit Ethernet 10 Gbps / 1 Gbps

Features

Acquisition Modes
Continuous / Single Frame / Multi Frame
Exposure Control
Hardware trigger, programmable via camera API, automatic
Exposure Range
17 µs to 30 seconds
Flash Memory
4 MB non-volatile memory
Gain Control
Manual, automatic (AGC)
Image Buffer
240 MB
Image Processing
Gamma, lookup table, and sharpness
Partial Image Modes
Pixel binning, decimation, ROI
User Sets
2 user configuration sets for custom camera settings

Performance

Absolute Sensitivity Threshold (y)
4.32
Dynamic Range dB
71.72
Gain Range
0 db to 47 dB
QE (Mono)
64 (530 nm)
Saturation Capacity (e-)
10649
Temporal Dark Noise (Read Noise)
2.36

Physical

Auxiliary Output
3.3 V, 120 mA maximum
Connector
RJ45 (horizontal locking) | Hirose HR10A-10R-12SB
Digitization Bit Depth (ADC)
8-bit, 10-bit, 12-bit
Dimensions [W x H x L]
60 mm × 60 mm × 64 mm
Mass
386 g
Non-Isolated I/O Ports
2 bi-directional
Operating Humidity
20 to 80% (no condensation)
Operating Temperature
0° to 70°C (case)
Opto-isolated I/O Ports
2 input, 2 output
Power Consumption [Maximum]
11.8 W (11.3 W nominal); GPIO power only
Power Requirements
12-24 V, via GPIO interface
Serial Port
1 (over non-isolated I/O)
Storage Humidity
20 to 95% (no condensation)
Storage Temperature
-30° to 60°C (ambient)
Vendor: Teledyne FLIR Product Type: GigE Camera SKU: ORX-10GS-32S4M-C Weight: 1.0 lb

Lead Times Vary, subject to existing open orders & stock availability.

Full Manufacturer Warranty

Contact us>> for special pricing over 5 pieces.

ORX-10GS-32S4C-C Features~

  • High Speed 10GigE Interface

             10Gbit/s transfer speed supports 4K60  (12-bit). Long cable lengths supporting CAT6A and CAT5e cables.    Click  for more 10GigE information.

  • Reliability & Simplicity

    Large 10GBASE-T install base supports  a favorable consumer ecosystem. Full GigE Vision compatibility. Packet  resend function for reliable image transmission

  • Flexibility for Integrators

    IEEE1588 Clock Synchronization for  precise timing across multiple devices - learn more. Color Correction  Matrix, Gamma, Saturation and Sharpness reduce host-side processing  requirements.
