Teledyne FLIR ORX-10GS-32S4C-C

Teledyne Flir
$1,590.00 $0.00( / )
Shipping calculated at checkout.

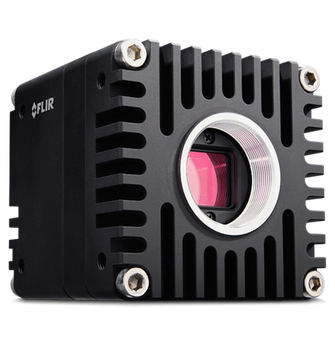

In Stock FLIR ORX-10GS-32S4C-C 3.2 MP, 216 FPS, Sony IMX252, Color Camera

FLIR ORX-10GS-32S4C-C 3.2 MP, 216 FPS, Sony IMX252, Color Camera

The ORX-10GS-32S4C-C Camera features transfer speeds of up to 10 Gbit/s enabling capture of 4K resolution, 12-bit images at over 60 FPS, IEEE1588 clock synchronization and full compatibility with several popular third-party software supporting GigE Vision.

Reliable image transfer at high bandwidth is further improved with Myricom bundles and packet resend feature. Oryx’s 10GBASE-T interface is a proven and widely deployed standard that provides reliable image transfer at cable lengths over 50 meters on inexpensive CAT6A, and up to 30 meters on CAT5e.

Vendor: Teledyne Flir Product Type: GigE Camera SKU: ORX-10GS-32S4C-C Weight: 1.0 lb

Full Manufacturer Warranty

Contact us>> for special pricing over 5 pieces.

ORX-10GS-32S4C-C Features~

  • High Speed 10GigE Interface

             10Gbit/s transfer speed supports 4K60  (12-bit). Long cable lengths supporting CAT6A and CAT5e cables.    Click  for more 10GigE information.

  • Reliability & Simplicity

    Large 10GBASE-T install base supports  a favorable consumer ecosystem. Full GigE Vision compatibility. Packet  resend function for reliable image transmission

  • Flexibility for Integrators

    IEEE1588 Clock Synchronization for  precise timing across multiple devices - learn more. Color Correction  Matrix, Gamma, Saturation and Sharpness reduce host-side processing  requirements.

Resolution 2048 × 1536

Frame Rate 216

Megapixels 3.2

Chroma Color

Sensor Name Sony IMX252

Sensor Type CMOS

Sensor Format 1/1.8"

Readout Method Global shutter

Pixel Size 3.45

Lens Mount C-mount

ADC 8-bit, 10-bit, 12-bit

Required Accessories Lens, Cable, Host Adapter (10GigE), Power Supply (ACC-01-9013 )


Acquisition Modes Continuous Single Frame Multi Frame

Exposure Range 17 µs to 30 seconds

Flash Memory 4 MB non-volatile memory

Frame Rate 216

Gain Range 0 db to 47 dB

Image Buffer 240 MB

Image Processing Color correction matrix, gamma, lookup table, saturation, and sharpness

Partial Image Modes Pixel binning, decimation, ROI

User Sets 2 user configuration sets for custom camera settings


Absolute Sensitivity Threshold (y) 4.67

Dynamic Range dB 71.89

Power Consumption 11.8 W (11.3 W nominal); GPIO power only

Quantum Efficiency Blue 48 (470 nm)

Quantum Efficiency Green 59 (525 nm)

Quantum Efficiency Red 45 (630 nm)

Saturation Capacity (e-) 10787

Temporal Dark Noise (e-) 2.24


ADC 8-bit, 10-bit, 12-bit

Auxiliary Output 3.3 V, 120 mA maximum

Chroma Color

Dimensions [W x H x L] 60 mm × 60 mm × 64 mm

Interface 10 GigE

Lens Mount C-mount

Mass 386 grams

Megapixels 3.2

Non-isolated I/O Ports 2 bi-directional

Operating Humidity 20 to 80% (no condensation)

Operating Temperature 0° to 70°C (case)

Opto-isolated I/O Ports 2 input, 2 output

Part Number ORX-10GS-32S4C-C

Pixel Size 3.45

Power Requirements 12-24 V, via GPIO interface

Readout Method Global shutter

Resolution 2048 × 1536

Sensor Format 1/1.8"

Sensor Name Sony IMX252

Sensor Type CMOS

Serial Port 1 (over non-isolated I/O)

Storage Humidity 20 to 95% (no condensation)

Storage Temperature -30° to 60°C (ambient)

Recommended System Configuration

CPU 4th Generation Intel Core i7 (or newer)

Hard Drive 200 MB hard drive space

Operating System Windows or Linux (32–bit or 64–bit)

Port 10GBASE–T Ethernet Port

Power Sourcing Equipment Camera Power Supply (12v 1.5A, 12–pin Hirose)

RAM 8 GB RAM or more (dual channel)

Required Accessories Lens, Cable, Host Adapter (10GigE), Power Supply (ACC-01-9013 )

Compliance & Certifications

Compliance CE, FCC, KCC, RoHS, REACH. The ECCN for this product is: EAR099.

Machine Vision Standard GigE Vision v1.2

Warranty 3 years
