Teledyne FLIR FFY-U3-16S2M-C

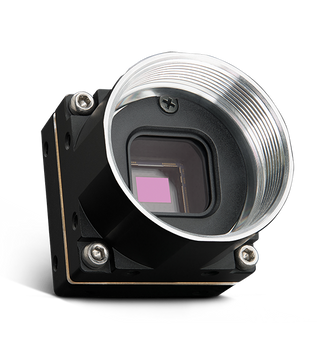

FLIR FFY-U3-16S2M-C 1.6 MP, 60 FPS, Sony IMX296, Monochrome Camera
FLIR FFY-U3-16S2M-C 1.6 MP, 60 FPS, Sony IMX296, Monochrome Camera
The Teledyne FLIR Firefly® S camera delivers the essential machine vision features you need in an ultra-compact body. Its small size, low power, and light weight make it ideal for embedding into portable devices. The Firefly S camera provides amazing value by combining powerful on-camera features with the latest CMOS sensors.
- Part Number
- FFY-U3-16S2M-C
- Resolution
- 1440 x 1080
- Megapixels
- 1.6
- Max Frame Rate Standard
- 60
- Sensor Model
- Sony IMX296
- Pixel Size
- 3.45
- Sensor Type
- CMOS
- Sensor Format
- 1/2.9"
- Shutter type
- Global shutter
- Spectrum
- Mono
- Optical Filter
- None
- Lens Mount
- C-mount
- Data Interface
- USB 3.1 Gen 1
Features
- Acquisition Modes
- Continuous / Single Frame / Multi Frame
- Exposure Range
- 29.0 µs to 30.0 S
- Flash Memory
- 24 MB non-volatile memory
- Image Buffer
- 32 MB
- Image Processing
- Gamma, lookup table, denoise, and sharpness
- Partial Image Modes
- ROI
- User Sets
- 2 user configuration sets for custom camera settings
Performance
- Absolute Sensitivity Threshold (y)
- 8.26
- Dynamic Range dB
- 66.03
- Gain Range
- 0.0 to 48.0 dB
- QE (Mono)
- 65 (530 nm)
- Saturation Capacity (e-)
- 10636
- Temporal Dark Noise (Read Noise)
- 4.81
Physical
- Auxiliary Output
- 3.3 V, 120 mA maximum
- Connector
- USB3 Micro-B | JST BM06B-NSHSS-TBT
- Digitization Bit Depth (ADC)
- 10-bit
- Dimensions [W x H x L]
- 27 mm x 27 mm x 14.5 mm
- Mass
- 20 g
- Non-Isolated I/O Ports
- 4 bi-directional
- Operating Humidity
- 20% to 80% (no condensation)
- Operating Temperature
- 0°C to 85°C (case)
- Power Consumption [Maximum]
- 2.2 W
- Power Requirements
- 5 V via USB 3.1 interface
- Serial Port
- 1 (over non-isolated I/O)
- Storage Humidity
- 20% to 95% (no condensation)
- Storage Temperature
- -30°C to 60°C (ambient)
Lead Times Vary
Full Manufacturer Warranty
Contact us>> for special pricing over 5 pieces
Features~
Ultra Compact
27 mm x 27 mm x 14 mm
20 grams
2.2 W power consumption
