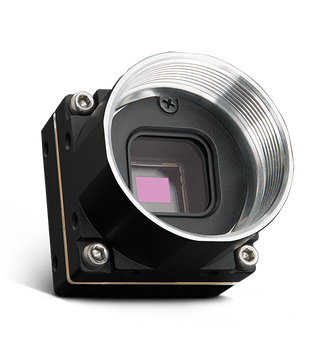

Teledyne FLIR FFY-U3-04S2M-S
FLIR FFY-U3-04S2M-S 0.4 MP, 121 FPS, Sony IMX297, Monochrome Camera with S-Mount Customization services offered; sensor glass removal, filter installation, custom housing, etc. Inquire for more information.
FLIR FFY-U3-04S2M-S 0.4 MP, 121 FPS, Sony IMX297, Monochrome Camera with S-Mount
Small, light, and low power
Ideal for embedding into compact, hand-held and portable devices with a footprint of 27 mm x 27 mm x 14 mm, 20 gram weight and 2.2 W power consumption.
Core machine vision capabilities
Essential machine vision features including GPIO, triggering, and partial image modes
- Part Number
- FFY-U3-04S2M-S
- Resolution
- 750 x 540
- Megapixels
- 0.4
- Max Frame Rate Standard
- 120
- Sensor Model
- Sony IMX297
- Pixel Size
- 6.9
- Sensor Type
- CMOS
- Sensor Format
- 1/2.9"
- Shutter type
- Global shutter
- Spectrum
- Mono
- Optical Filter
- None
- Lens Mount
- S-mount
- Data Interface
- USB 3.1 Gen 1
Features
- Acquisition Modes
- Continuous / Single Frame / Multi Frame
- Exposure Range
- 29.0 µs to 30.0 S
- Flash Memory
- 24 MB non-volatile memory
- Image Buffer
- 32 MB
- Image Processing
- Gamma, lookup table, denoise, and sharpness
- Partial Image Modes
- ROI
- User Sets
- 2 user configuration sets for custom camera settings
Performance
- Absolute Sensitivity Threshold (y)
- 7.49
- Dynamic Range dB
- 68.93
- Gain Range
- 0.0 to 48.0 dB
- QE (Mono)
- 64 (530 nm)
- Saturation Capacity (e-)
- 20925
- Temporal Dark Noise (Read Noise)
- 6.99
Physical
- Auxiliary Output
- 3.3 V, 120 mA maximum
- Connector
- USB3 Micro-B | JST BM06B-NSHSS-TBT
- Digitization Bit Depth (ADC)
- 10-bit
- Dimensions [W x H x L]
- 27 mm x 27 mm x 14.5 mm
- Mass
- 20 g
- Non-Isolated I/O Ports
- 4 bi-directional
- Operating Humidity
- 20% to 80% (no condensation)
- Operating Temperature
- 0°C to 85°C (case)
- Power Consumption [Maximum]
- 2.2 W
- Power Requirements
- 5 V via USB 3.1 interface
- Serial Port
- 1 (over non-isolated I/O)
- Storage Humidity
- 20% to 95% (no condensation)
- Storage Temperature
- -30°C to 60°C (ambient)
Vendor: Teledyne FLIR
Product Type: USB Camera
SKU: FFY-U3-04S2M-S
Weight: 1.0 lb
Lead Times Vary
Full Manufacturer Warranty
Contact us>> for special pricing over 5 pieces.
Features~
Ultra Compact
27 mm x 27 mm x 14 mm
20 grams
2.2 W power consumption
