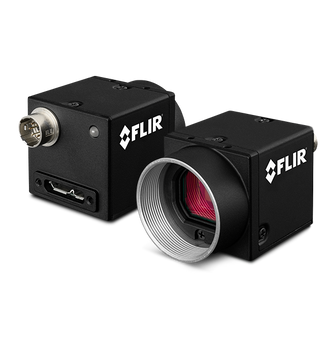

Teledyne FLIR BFS-U3-70S7C-C

Teledyne FLIR
|
BFS-U3-70S7C-C
$1,986.00 $0.00( / )
Shipping calculated at checkout.

7.1 MP, 51 FPS, Sony IMX428, Color

Teledyne FLIR BFS-U3-70S7C-C 7.1 MP, 51 FPS, Sony IMX428, Color

Part Number
BFS-U3-70S7C-C
Resolution
3208 x 2200
Megapixels
7.1
Max Frame Rate Standard
51
Sensor Model
Sony IMX428
Pixel Size
4.5
Sensor Type
CMOS
Sensor Format
1.1"
Shutter type
Global shutter
Spectrum
Color
Optical Filter
IR-Cut Off (670 nm)
Lens Mount
C-mount
Synchronization
Software trigger, hardware trigger, action command
Data Interface
USB 3.1 Gen 1

Features

Acquisition Modes
Continuous / Single Frame / Multi Frame
Exposure Control
Hardware trigger, programmable via camera API, automatic
Exposure Range
9 µs to 30 seconds
Flash Memory
6 MB non-volatile memory
Gain Control
Manual, automatic (AGC)
Image Buffer
240 MB
Image Processing
Gamma, lookup table, and sharpness
Partial Image Modes
Pixel binning, decimation, ROI
User Sets
2 user configuration sets for custom camera settings
White Balance
Manual, automatic (AWB)

Performance

Absolute Sensitivity Threshold (y)
4.73 (HCG) / 9.52 (LCG)
Dynamic Range dB
70.72 (HCG) / 71.86 (LCG)
Gain Range
0 dB to 47 dB
QE Blue
52 (HCG) / 53 (LCG) @460 nm
QE Green
68 (HCG) / 69 (LCG) @530 nm
QE Red
63 (HCG) / 64 (LCG) @625 nm
Saturation Capacity (e-)
11097 (HCG) / 25428 (LCG)
Temporal Dark Noise (Read Noise)
2.70 (HCG) / 6.06 (LCG)

Physical

Auxiliary Output
3.3 V, 120 mA maximum
Connector
USB3 Micro-B | Hirose HR10A-7R-6PB
Digitization Bit Depth (ADC)
12-bit
Dimensions [W x H x L]
29 mm × 29 mm × 39 mm
Mass
53 g
Non-Isolated I/O Ports
1 bi-directional, 1 input
Operating Humidity
20 to 80% (no condensation)
Operating Temperature
0° to 50°C (ambient)
Opto-isolated I/O Ports
1 input, 1 output
Power Consumption [Maximum]
4.2 W
Power Requirements
8-24 V via GPIO or 5 V via USB3
Serial Port
Supported
Storage Humidity
30 to 95% (no condensation)
Storage Temperature
-30° to 60°C
Vendor: Teledyne FLIR Product Type: USB Camera SKU: BFS-U3-70S7C-C Weight: 1.0 lb

Lead Times Vary, subject to existing open orders & stock availability.

Full Manufacturer Warranty

Contact us>> for special pricing over 5 pieces.

Features~

  • Choice of CMOS global shutter, polarization, and high-sensitivity BSI sensors. Color transformation tools ensure true- to-life color. Advanced auto-algorithms or precise manual control.

  • Support for a wide range of operating systems and host system hardware architectures. Easily switch to board level models for embedded systems. Simplified product iteration with consistent form factor across sensor sizes.

  • Compatible with third party software and hardware. Less code-writing required using powerful on-camera features. Quickly build custom applications with rich sample code and descriptive API logging.
