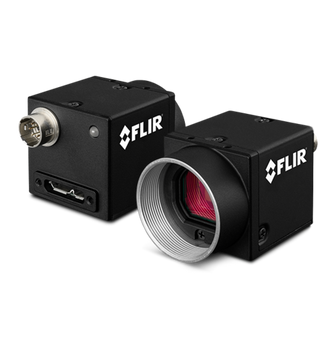

Teledyne FLIR BFS-U3-63S4M-C

Teledyne FLIR
|
BFS-U3-63S4M-C
$384.00 $0.00( / )
Shipping calculated at checkout.

IN STOCK 6.3 MP, 59.6 FPS, Sony IMX178, Monochrome FLIR BFS-U3-63S4M-C

6.3 MP, 59.6 FPS, Sony IMX178, Monochrome FLIR BFS-U3-63S4M-C



Part Number
BFS-U3-63S4M-C
Resolution
3072 x 2048
Megapixels
6.3
Max Frame Rate Standard
59.6
Sensor Model
Sony IMX178
Pixel Size
2.4
Sensor Type
CMOS
Sensor Format
1/1.8"
Shutter type
Rolling shutter with global reset
Spectrum
Mono
Optical Filter
None
Lens Mount
C-mount
Synchronization
Software trigger, hardware trigger, action command
Data Interface
USB 3.1 Gen 1

Features

Acquisition Modes
Continuous / Single Frame / Multi Frame
Exposure Control
Hardware trigger, programmable via camera API, automatic
Exposure Range
8 µs to 30 seconds
Flash Memory
6 MB non-volatile memory
Gain Control
Manual, automatic (AGC)
Image Buffer
240 MB
Image Processing
Gamma, lookup table, and sharpness
Partial Image Modes
Pixel binning, decimation, ROI
User Sets
2 user configuration sets for custom camera settings

Performance

Absolute Sensitivity Threshold (y)
4.03
Dynamic Range dB
73.73
Gain Range
0 dB to 47 dB
QE (Mono)
75.05 @530 nm
Saturation Capacity (e-)
14204
Temporal Dark Noise (Read Noise)
2.42

Physical

Auxiliary Output
3.3 V, 120 mA maximum
Connector
USB3 Micro-B | Hirose HR10A-7R-6PB
Digitization Bit Depth (ADC)
10-bit, 14-bit
Dimensions [W x H x L]
29 mm × 29 mm × 30 mm
Mass
36 g
Non-Isolated I/O Ports
1 bi-directional, 1 input
Operating Humidity
20 to 80% (no condensation)
Operating Temperature
0° to 50°C (ambient)
Opto-isolated I/O Ports
1 input, 1 output
Power Consumption [Maximum]
3 W
Power Requirements
8-24 V via GPIO or 5 V via USB3
Serial Port
Supported
Storage Humidity
30 to 95% (no condensation)
Storage Temperature
-30° to 60°C


Vendor: Teledyne FLIR Product Type: USB Camera SKU: BFS-U3-63S4M-C Weight: 1.0 lb

BFS-U3-63S4M-C Resolution: 3072 × 2048

Frame Rate 59.6

Megapixels 6.3

Chroma: Mono

Sensor Name Sony IMX178

Sensor Type CMOS

BFS-U3-63S4M-C Sensor Format: 1/1.8"

Readout Method Rolling shutter with global reset

Pixel Size 2.4

BFS-U3-63S4M-C: Lens Mount C-mount

ADC 10-bit, 14-bit

Required Accessories Lens, Cable, Host Adapter (USB 3.1 Gen 1), Tripod Mount Adapter (ACC-01-0003)

Full Manufacturer BFS-U3-63S4M-C Warranty

Contact us>> for special pricing over 5 pieces.

BFS-U3-63S4M-C Features~

  • Choice of CMOS global shutter, polarization, and high-sensitivity BSI sensors. Color transformation tools ensure true- to-life color. Advanced auto-algorithms or precise manual control.

  • Support for a wide range of operating systems and host system hardware architectures. Easily switch to board level models for embedded systems. Simplified product iteration with consistent form factor across sensor sizes.

  • Compatible with third party software and hardware. Less code-writing required using powerful on-camera features. Quickly build custom applications with rich sample code and descriptive API logging.
