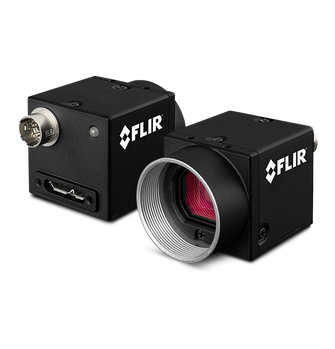

Teledyne FLIR BFS-U3-51S5P-C

Teledyne Flir
|
BFS-U3-51S5P-C
$2,218.00 $0.00( / )
Shipping calculated at checkout.

5.0 MP, 75 FPS, Sony IMX250MZR, Polar-Mono

Teledyne FLIR BFS-U3-51S5P-C 5.0 MP, 75 FPS, Sony IMX250MZR, Polar-Monochrome



The Blackfly® S leverages the industry’s most advanced sensors in an ice-cube form factor. It is packed with powerful features enabling you to easily produce the exact images you need and accelerate your application development. This includes both automatic and precise manual control over image capture and on-camera pre-processing. The Blackfly S is available in GigE, USB3, cased, and board-level versions.

Part Number
BFS-U3-51S5P-C
Resolution
2448 × 2048
Frame Rate
75
Megapixels
5
Chroma
Polarized
Sensor Name
Sony IMX250MZR
Sensor Type
CMOS
Sensor Format
2/3"
Readout Method
Global shutter
Pixel Size
3.45
Lens Mount
C-mount
ADC
10-bit, 12-bit
Required Accessories
Lens, Cable, Host Adapter (USB 3.1 Gen 1), Tripod Mount Adapter (ACC-01-0003)
Features
Acquisition Modes
Continuous Single Frame Multi Frame
Flash Memory
6 MB non-volatile memory
Frame Rate
75
Image Buffer
240 MB
Image Processing
Gamma, lookup table, and sharpness
Partial Image Modes
Pixel binning, decimation, ROI
User Sets
2 user configuration sets for custom camera settings
Performance
Absolute Sensitivity Threshold (y)
12.10
Dynamic Range dB
71.81
Power Consumption
<2.5 W
Quantum Efficiency
24.1 (530nm)
Saturation Capacity (e-)
11359
Temporal Dark Noise (e-)
2.42
Physical
ADC
10-bit, 12-bit
Auxiliary Output
3.3 V, 120 mA maximum
Chroma
Polarized
Dimensions [W x H x L]
29 mm × 29 mm × 30 mm
Interface
USB 3.1 Gen 1
Lens Mount
C-mount
Mass
36 grams
Megapixels
5
Non-isolated I/O Ports
1 bi-directional, 1 input
Operating Humidity
20 to 80% (no condensation)
Operating Temperature
0° to 50°C
Opto-isolated I/O Ports
1 input, 1 output
Part Number
BFS-U3-51S5P-C
Pixel Size
3.45
Power Requirements
Power over Ethernet (PoE), or 12 V nominal (8 - 24 V) via GPIO
Readout Method
Global shutter
Resolution
2448 × 2048
Sensor Format
2/3"
Sensor Name
Sony IMX250MZR
Sensor Type
CMOS
Storage Humidity
30 to 95% (no condensation)
Storage Temperature
-30° to 60°C
Vendor: Teledyne Flir Product Type: PHYSICAL SKU: BFS-U3-51S5P-C Weight: 1.0 lb

Lead Times Vary, subject to existing open orders & stock availability.

Full Manufacturer Warranty

Contact us>> for special pricing over 5 pieces.

Features~

  • Choice of CMOS global shutter, polarization, and high-sensitivity BSI sensors. Color transformation tools ensure true- to-life color. Advanced auto-algorithms or precise manual control.

  • Support for a wide range of operating systems and host system hardware architectures. Easily switch to board level models for embedded systems. Simplified product iteration with consistent form factor across sensor sizes.

  • Compatible with third party software and hardware. Less code-writing required using powerful on-camera features. Quickly build custom applications with rich sample code and descriptive API logging.
