Teledyne FLIR BFS-U3-51S5C-C

Teledyne Flir
|
BFS-U3-51S5C-C
$1,206.00 $0.00( / )
Shipping calculated at checkout.

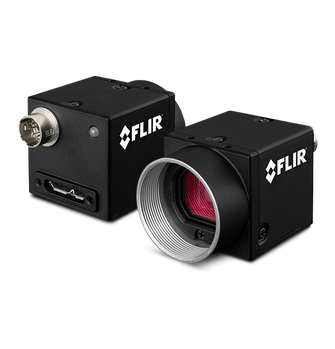

FLIR BFS-U3-51S5C-C 5.0 MP, 75 FPS, Sony IMX250, Color Camera


FLIR BFS-U3-51S5C-C 5.0 MP, 75 FPS, Sony IMX250, Color Camera

Part Number BFS-U3-51S5C-C

Resolution 2448 × 2048

Frame Rate 75

Megapixels 5

Chroma Color

Sensor Name Sony IMX250

Sensor Type CMOS

Sensor Format 2/3"

Readout Method Global shutter

Pixel Size 3.45

Lens Mount C-mount

ADC 10-bit, 12-bit

Required Accessories Lens, Cable, Host Adapter (USB 3.1 Gen 1), Tripod Mount Adapter (ACC-01-0003)

Features

Acquisition Modes Continuous Single Frame Multi Frame

Flash Memory 6 MB non-volatile memory

Frame Rate 75

Image Buffer 240 MB

Image Processing Color correction matri×, gamma, lookup table, saturation, and sharpness

Partial Image Modes Pixel binning, decimation, ROI

User Sets 2 user configuration sets for custom camera settings

Performance

Absolute Sensitivity Threshold (y) 5.23

Dynamic Range dB 71.50

Quantum Efficiency Blue 46.57 (460nm)

Quantum Efficiency Green 56.33 (530nm)

Quantum Efficiency Red 44.94 (625nm)

Saturation Capacity (e-) 11071

Temporal Dark Noise (e-) 2.45

Physical

ADC 10-bit, 12-bit

Auxiliary Output 3.3 V, 120 mA maximum

Chroma Color

Dimensions [W x H x L] 29 mm × 29 mm × 30 mm

Interface USB 3.1 Gen 1

Lens Mount C-mount

Mass 36 grams

Megapixels 5

Non-isolated I/O Ports 1 bi-directional, 1 input

Operating Humidity 20 to 80% (no condensation)

Operating Temperature 0° to 50°C

Opto-isolated I/O Ports 1 input, 1 output

Part Number BFS-U3-51S5C-C

Pixel Size 3.45

Power Requirements 8-24 V via GPIO or 5 V via USB3

Readout Method Global shutter

Resolution 2448 × 2048

Sensor Format 2/3"

Sensor Name Sony IMX250

Sensor Type CMOS

Storage Humidity 30 to 95% (no condensation)

Storage Temperature -30° to 60°C

Vendor: Teledyne Flir Product Type: USB Camera SKU: BFS-U3-51S5C-C Weight: 1.0 lb

Lead Times Vary, subject to existing open orders & stock availability.

Full Manufacturer Warranty

Contact us>> for special pricing over 5 pieces.

Features~

  • Choice of CMOS global shutter, polarization, and high-sensitivity BSI sensors. Color transformation tools ensure true- to-life color. Advanced auto-algorithms or precise manual control.

  • Support for a wide range of operating systems and host system hardware architectures. Easily switch to board level models for embedded systems. Simplified product iteration with consistent form factor across sensor sizes.

  • Compatible with third party software and hardware. Less code-writing required using powerful on-camera features. Quickly build custom applications with rich sample code and descriptive API logging.
