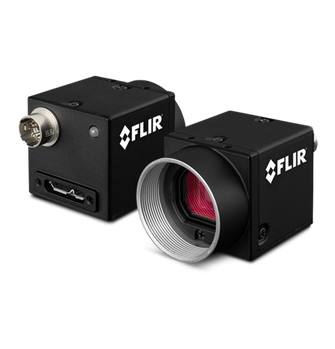

Teledyne FLIR BFS-U3-23S3C-C
2.3 MP, 163 FPS, Sony IMX392, Color
2.3 MP, 163 FPS, Sony IMX392, Color
Customization services offered; sensor glass removal, filter installation, custom housing, etc. Inquire for more information.
- Part Number
- BFS-U3-23S3C-C
- Resolution
- 1920 x 1200
- Megapixels
- 2.3
- Max Frame Rate Standard
- 163
- Sensor Model
- Sony IMX392
- Pixel Size
- 3.45
- Sensor Type
- CMOS
- Sensor Format
- 1/2.3"
- Shutter type
- Global shutter
- Spectrum
- Color
- Optical Filter
- IR-Cut Off (670 nm)
- Lens Mount
- C-mount
- Synchronization
- Software trigger, hardware trigger, action command
- Data Interface
- USB 3.1 Gen 1
- Auxiliary Output
- 3.3 V, 120 mA maximum
- Connector
- USB3 Micro-B | Hirose HR10A-7R-6PB
- Digitization Bit Depth (ADC)
- 10-bit, 12-bit
- Dimensions [W x H x L]
- 29 mm × 29 mm × 30 mm
- Mass
- 36 g
- Non-Isolated I/O Ports
- 1 bi-directional, 1 input
- Operating Humidity
- 20 to 80% (no condensation)
- Operating Temperature
- 0° to 50°C (ambient)
- Opto-isolated I/O Ports
- 1 input, 1 output
- Power Consumption [Maximum]
- <3 W
- Power Requirements
- 8-24 V via GPIO or 5 V via USB3
- Serial Port
- Supported
- Storage Humidity
- 30 to 95% (no condensation)
- Storage Temperature
- -30° to 60°C
Lead Times Vary, subject to existing open orders & stock availability.
Full Manufacturer Warranty
Contact us>> for special pricing over 5 pieces.
Features~
Choice of CMOS global shutter, polarization, and high-sensitivity BSI sensors. Color transformation tools ensure true- to-life color. Advanced auto-algorithms or precise manual control.
Support for a wide range of operating systems and host system hardware architectures. Easily switch to board level models for embedded systems. Simplified product iteration with consistent form factor across sensor sizes.
Compatible with third party software and hardware. Less code-writing required using powerful on-camera features. Quickly build custom applications with rich sample code and descriptive API logging.
