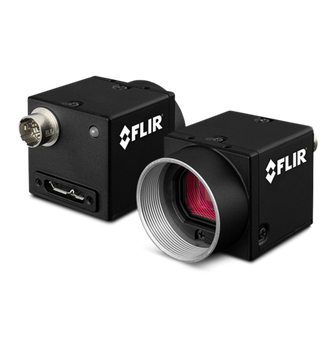

Teledyne FLIR BFS-U3-19S4C-C

Teledyne Flir
|
SQ4315226
$606.00 $0.00( / )
Shipping calculated at checkout.

1.9 MP, 131 FPS, Sony IMX430, Color

Teledyne FLIR BFS-U3-19S4C-C 1.9 MP, 131 FPS, Sony IMX430, Color

Part Number
BFS-U3-19S4C-C
Resolution
1616 x 1240
Megapixels
2.0
Max Frame Rate Standard
131
Sensor Model
Sony IMX430
Pixel Size
4.5
Sensor Type
CMOS
Sensor Format
1/1.7"
Shutter type
Global shutter
Spectrum
Color
Optical Filter
IR-Cut Off (670 nm)
Lens Mount
C-mount
Synchronization
Software trigger, hardware trigger, action command
Data Interface
USB 3.1 Gen 1
Auxiliary Output
3.3 V, 120 mA maximum
Connector
USB3 Micro-B | Hirose HR10A-7R-6PB
Digitization Bit Depth (ADC)
12-bit
Dimensions [W x H x L]
29 mm × 29 mm × 39 mm
Mass
53 g
Non-Isolated I/O Ports
1 bi-directional, 1 input
Operating Humidity
20 to 80% (no condensation)
Operating Temperature
0° to 50°C (ambient)
Opto-isolated I/O Ports
1 input, 1 output
Power Consumption [Maximum]
4.2 W
Power Requirements
8-24 V via GPIO or 5 V via USB3
Serial Port
Supported
Storage Humidity
30 to 95% (no condensation)
Storage Temperature
-30° to 60°C
Absolute Sensitivity Threshold (y)
4.98 (HCG) / 9.88 (LCG)
Dynamic Range dB
70.95 (HCG) / 72.12 (LCG)
Gain Range
0 dB to 47 dB
QE Blue
52 (HCG) / 53 (LCG) @460 nm
QE Green
62 (HCG) / 63 (LCG) @525 nm
QE Red
50 (HCG) / 50 (LCG) @630 nm
Saturation Capacity (e-)
10970 (HCG) / 25196 (LCG)
Temporal Dark Noise (Read Noise)
2.61 (HCG) / 5.74 (LCG)
Vendor: Teledyne Flir Product Type: USB Camera SKU: SQ4315226 Weight: 1.0 lb

Lead Times Vary, subject to existing open orders & stock availability.

Full Manufacturer Warranty

Contact us>> for special pricing over 5 pieces.

Features~

  • Choice of CMOS global shutter, polarization, and high-sensitivity BSI sensors. Color transformation tools ensure true- to-life color. Advanced auto-algorithms or precise manual control.

  • Support for a wide range of operating systems and host system hardware architectures. Easily switch to board level models for embedded systems. Simplified product iteration with consistent form factor across sensor sizes.

  • Compatible with third party software and hardware. Less code-writing required using powerful on-camera features. Quickly build custom applications with rich sample code and descriptive API logging.
