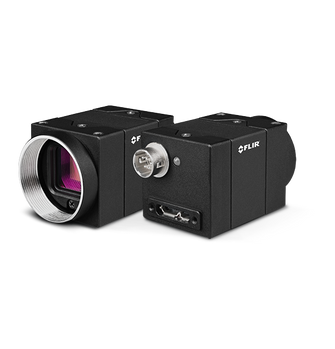

Teledyne FLIR BFS-U3-120S6M-C Camera

Teledyne Flir
$1,650.00 $0.00( / )
Shipping calculated at checkout.

Teledyne FLIR BFS-U3-120S6M-C Machine Vision Camera

*New 2023 Release

Exceptional imaging performance

  • Sony Pregius® S BSI CMOS sensor Technology
  • Superior quantum efficiency (68% @ 525 nm)
  • Excellent low-light performance (2.53 e- read noise)
  • Global shutter

Value Packed

  • New 74   µm   pixel   size   enables  less   expensive, more compact optics
  • High sensitivity (High QE, Low AST) reduces lighting system requirements
  • 240 MB frame buffer for maximum data reliability
  • Supports Color Correction Matrix, LUT, gamma & Logic Blocks
  • Compact form factor, 29 x 29 x 39 mm


Image Sensor

Sony IMX545

Sensor Type




Sensor Format


Resolution/Frame rate

4096 * 3000 @ 30 FPS

Pixel size

2.74 µm


Global Shutter

Lens mount



Opto-isolated: input (x1) and output (x1); Non-isolated: bi-directional (x1), input (x1)


240 MByte DDR frame buffer, 6 MByte non-volatile flash


Voltage, current, temperature sensors; LED for status and power


29 x 29 x 39 mm excluding lens holder, without optics


5V via USB3.1 Interface



Vendor: Teledyne Flir Product Type: USB Camera SKU: BFS-U3-120S6M-C Weight: 1.0 lb
