Teledyne FLIR BFS-PGE-16S2M-CS

Teledyne FLIR
|
BFS-PGE-16S2M-CS
$344.00 $0.00( / )
Shipping calculated at checkout.

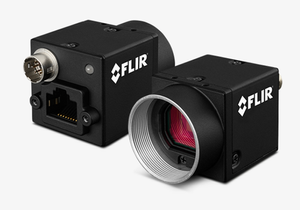

FLIR BFS-PGE-16S2M-CS 1.6 MP, 78 FPS, Sony IMX273, Monochrome Camera

FLIR BFS-PGE-16S2M-CS 1.6 MP, 78 FPS, Sony IMX273, Monochrome Camera

Part Number
BFS-PGE-16S2M-CS
Resolution
1440 x 1080
Megapixels
1.6
Max Frame Rate Standard
78
Max Frame Rate Turbodrive/Lossless Compression
137
Sensor Model
Sony IMX273
Pixel Size
3.45
Sensor Type
CMOS
Sensor Format
1/2.9"
Shutter type
Global shutter
Spectrum
Mono
Optical Filter
None
Lens Mount
CS-mount
Synchronization
Software trigger, hardware trigger, action command, PTP
Data Interface
Gigabit Ethernet 1 Gbps

Features

Acquisition Modes
Continuous / Single Frame / Multi Frame
Exposure Control
Hardware trigger, programmable via camera API, automatic
Exposure Range
20 µs to 30 seconds
Flash Memory
6 MB non-volatile memory
Gain Control
Manual, automatic (AGC)
Image Buffer
240 MB
Image Processing
Gamma, lookup table, and sharpness
Partial Image Modes
Pixel binning, decimation, ROI
User Sets
2 user configuration sets for custom camera settings

Performance

Absolute Sensitivity Threshold (y)
4.57
Dynamic Range dB
71.20
Gain Range
0 db to 47 dB
QE (Mono)
63 @525 nm
Saturation Capacity (e-)
10499
Temporal Dark Noise (Read Noise)
2.26

Physical

Auxiliary Output
3.3 V, 120 mA maximum
Connector
RJ45 (horizontal locking) | Hirose HR10A-7R-6PB
Digitization Bit Depth (ADC)
10-bit, 12-bit
Dimensions [W x H x L]
29 mm × 29 mm × 30 mm
Mass
36 g
Non-Isolated I/O Ports
1 bi-directional, 1 input
Operating Humidity
20 to 80% (no condensation)
Operating Temperature
0° to 50°C (ambient)
Opto-isolated I/O Ports
1 input, 1 output
Power Consumption [Maximum]
3 W (2.8 W nominal)
Power Requirements
Power over Ethernet (PoE), or 12 V nominal (8 - 24 V) via GPIO
Serial Port
Supported
Storage Humidity
30 to 95% (no condensation)
Storage Temperature
-30° to 60°C

Recommended System Configuration

Port
Gigabit Ethernet Port
Power Sourcing Equipment
IEEE802.3af-2003 PoE Interface Card / Injector/ Switch or Camera Power Supply (12 V 1.5 A, 6–pin Hirose)
Required Accessories
Lens, Cable, Host Adapter (GigE)

Compliance & Certifications

Compliance
CE, FCC, KCC, RoHS. The ECCN for this product is: EAR099.
Machine Vision Standard
GigE Vision v1.2
Warranty
3 years
Vendor: Teledyne FLIR Product Type: GigE Camera SKU: BFS-PGE-16S2M-CS Weight: 1.0 lb

Lead Times Vary, subject to existing open orders & stock availability.

Full Manufacturer Warranty

Contact us>> for special pricing over 5 pieces.

Features~

  • IEEE1588 clock  synchronization

  • Full compatibility with popular third-party software

  • Lossless Compression  (LLC) are also available with higher maximum frame rates and lower  bandwidth requirements, helping maximize output without compromising  image quality.

*Blackfly S is available in GigE, USB3, cased, and  board-level versions.
