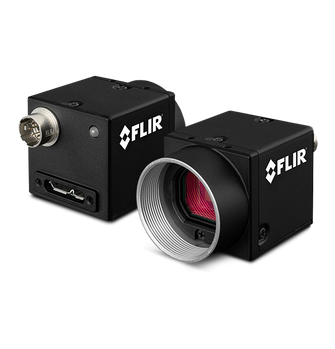

Teledyne FLIR BFLY-U3-23S6M-C
2.3 MP, 41 FPS, Sony IMX249, Monochrome
Teledyne FLIR BFLY-U3-23S6M-C 2.3 MP, 41 FPS, Sony IMX249, Monochrome Camera
- Part Number
- BFLY-U3-23S6M-C
- Resolution
- 1920 × 1200
- Megapixels
- 2.3
- Max Frame Rate Standard
- 41
- Sensor Model
- Sony IMX249
- Pixel Size
- 5.86
- Sensor Type
- CMOS
- Sensor Format
- 1/1.2"
- Shutter type
- Global shutter
- Spectrum
- Mono
- Optical Filter
- None
- Lens Mount
- C-mount
- Data Interface
- USB 3.1 Gen 1
- Auxiliary Output
- 3.3 V, 120 mA maximum
- Connector
- USB3 Micro-B | Hirose HR10A-7R-6PB
- Digitization Bit Depth (ADC)
- 10-bit, 12-bit
- Dimensions [W x H x L]
- 29 mm × 29 mm ×30 mm
- Mass
- 36 g
- Operating Humidity
- 20 to 80% (no condensation)
- Operating Temperature
- 0° to 45°C (ambient)
- Opto-isolated I/O Ports
- 1 input, 1 output
- Power Consumption [Maximum]
- <3 W
- Power Requirements
- 5-24 V via GPIO or 5 V via USB3
- Storage Humidity
- 20 to 95% (no condensation)
- Storage Temperature
- -30° to 60°C
Vendor: Teledyne Flir
Product Type: USB Camera
SKU: BFLY-U3-23S6M-C
Weight: 1.0 lb
Lead Times Vary
Full Manufacturer Warranty
Contact us>> for special pricing over 5 pieces.
Features~
Compact: 29 x 29 x 30mm
On-camera image processing: color interpolation, gamma, and LUT
16 MByte frame buffer
LED status indicator
3 Year Warranty
3 Watts
