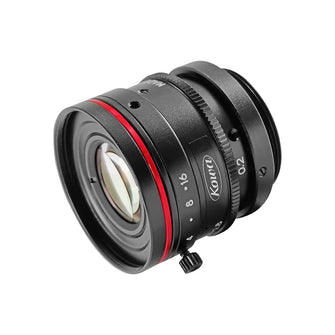

Kowa LM35JC5MC Lens

$312.00 $0.00( / )
Shipping calculated at checkout.

Kowa LM35JC5MC Lens

The 2/3" megapixel JCM lens series provides extremely high megapixel resolution and utilizes Kowa's floating mechanism design. With a close minimum object distance, low distortion, and compact design, these lenses are ideal for machine vision applications.


Lens TypeFixed Focal Length Lens
Image Size2/3" (8.8 x 6.6 x 11mm)
Focal Length35mm
Iris Range (F-Stop)F2.0 - F16
Minimum Focus Distance0.2m
Angle of View 2/3" (Hor. x Ver. x Dia.)14.4 x 10.8 x 17.9°
Angle of View 1/1.8" (Hor. x Ver. x Dia.)11.8 x 8.8 x 14.7°
Angle of View 1/2" (Hor. x Ver. x Dia.)10.5 x 7.9 x 13.1°
Field of View at M.O.D. 2/3" (Hor. x Ver. x Dia.)47.9 x 35.8 x 60.0mm
Field of View at M.O.D. 1/1.8" (Hor. x Ver. x Dia.)39.1 x 29.3 x 49.0mm
Field of View at M.O.D. 1/2" (Hor. x Ver. x Dia.)34.7 x 26.0 x 43.5mm
TV Distortion-0.2%
Flange Back17.526mm in air
Back Focus20.1mm in air
Filter Thread SizeM27 x P0.5
Front / Rear Effective DiameterFront Φ21.5mm / Rear Φ11.7mm
Exit Pupil Location-38.8mm
Temperature Range-10°C ~ +50°C
Storage Temperature Range-40°C ~ +60°C
Resolution: Center / CornerCenter 100lp/mm / Corner 80lp/mm
Vendor: Kowa SKU: LM35JC5MC Weight: 1.0 lb
