Fujifilm HF75SA-1 Lens

Fujifilm
|
HF75SA-1
$333.00 $0.00( / )
Shipping calculated at checkout.

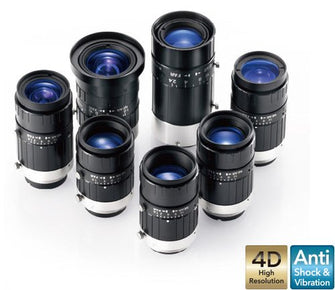

Fujifilm 5 Megapixel 2/3" Lens

Fujifilm 5 Megapixel 2/3" Lens

The Fujifilm minimizes distortion which causes problems in applications requiring high accuracy such as dimension measurement. This series is designed to achieve high resolution up to 5 megapixels (3.45µm pixel pitch) compatible with 2/3" sensors.



Focal length [mm]75
Iris range (F. no)F1.8-F22
Angle of view6.7°x 5.0° (2/3")
Working Distance*2 (mm)∞-900
Operation of focusManual
Operation of irisManual
Filter thread [mm]M49 x 0.75
MountC-mount
Weight (approx.) [g]305
Sensor size (std.)*32/3" (3.45μm)
Sensor size (max.)*42/3" (3.45μm)
TV distortion [%]0.01
Dimension [mm]Φ51×76
Vendor: Fujifilm Product Type: PHYSICAL SKU: HF75SA-1 Weight: 1.0 lb
Lead time varies by product. Standard non-back-order items ship within 1-7 days. Items in stock at our Sacramento warehouse ship on the same day that the order is placed. Back-ordered item lead times vary and are based on current production backlogs and existing open orders. After receipt of order you will be contacted with a shipping timeline. Please look out for a call or email from us about your ship date.

Note: We do ship internationally, shipping terms are INCO TERM EX WORKS. Customer is responsible for any applicable duties, taxes or fees that the destination country may apply.


*Note, if the order is resale or government tax exempt, contact us to place the order directly with our sales staff and provide your tax exemption form.
