Fujifilm HF35SA-1 Lens

$280.00 $0.00( / )
Shipping calculated at checkout.

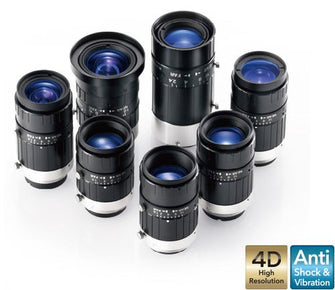

Fujifilm 5 Megapixel 2/3" Lens

Fujifilm 5 Megapixel 2/3" Lens

The Fujifilm minimizes distortion which causes problems in applications requiring high accuracy such as dimension measurement. This series is designed to achieve high resolution up to 5 megapixels (3.45µm pixel pitch) compatible with 2/3" sensors.


Focal length [mm]35
Iris range (F. no)F1.4-F22
Angle of view14.0°x 10.5° (2/3")
Working Distance*2 (mm)∞-200
Operation of focusManual
Operation of irisManual
Filter thread [mm]M49 x 0.75
Weight (approx.) [g]185
Sensor size (std.)*32/3" (3.45μm)
Sensor size (max.)*42/3" (3.45μm)
TV distortion [%]0.07
Dimension [mm]Φ51×48.5
Vendor: Fujifilm Product Type: PHYSICAL SKU: HF35SA-1 Weight: 1.0 lb
Lead time varies by product. Standard non-back-order items ship within 1-7 days. Items in stock at our Sacramento warehouse ship on the same day that the order is placed. Back-ordered item lead times vary and are based on current production backlogs and existing open orders. After receipt of order you will be contacted with a shipping timeline. Please look out for a call or email from us about your ship date.

Note: We do ship internationally, shipping terms are INCO TERM EX WORKS. Customer is responsible for any applicable duties, taxes or fees that the destination country may apply.

*Note, if the order is resale or government tax exempt, contact us to place the order directly with our sales staff and provide your tax exemption form.
