Fujifilm HF25SA-1

Fujifilm
|
HF25SA-1
$268.00 $0.00( / )
Shipping calculated at checkout.

Fujifilm 5 Megapixel 2/3" Lens

Categories:

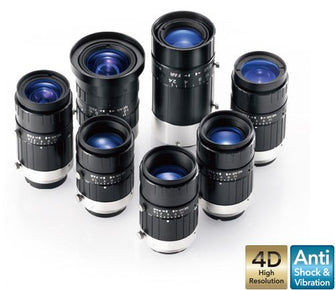

Fujifilm 5 Megapixel 2/3" Lens

The Fujifilm minimizes distortion which causes problems in applications requiring high accuracy such as dimension measurement. This series is designed to achieve high resolution up to 5 megapixels (3.45µm pixel pitch) compatible with 2/3" sensors.



Focal length [mm]25
Iris range (F. no)F1.4-F22
Angle of view20.8°x 15.7° (2/3")
Working Distance*2 (mm)∞-100
Operation of focusManual
Operation of irisManual
Filter thread [mm]M49 x 0.75
MountC-mount
Weight (approx.) [g]315
Sensor size (std.)*32/3" (3.45μm)
Sensor size (max.)*42/3" (3.45μm)
TV distortion [%]-0.06
Dimension [mm]Φ51×75.5
