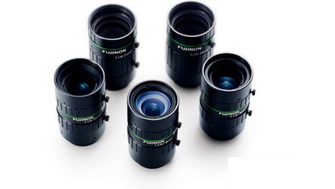

Fujinon 12 Megapixel 2/3" Format Lens
The Fujifilm 12M series, is an ultra compact 12Megapixel lens with 2.1?m pixel pitch performance. All models are designed for "4DHR", Anti Shock & Vibration, and low-distortion.
FUJINON HF-12M features high performance "4D HR" to minimize such degradation. It maintains a highly consistent image sharpness from the center to the edges, while mitigating degradation of resolution caused by changes in the shooting distance or aperture. This enables consistent delivery of high-resolution images under a wide variety of installation and shooting conditions.
When the iris (aperture) is set at the orange F4 marker on the lens barrel, the HF-12M series delivers the resolving power greater than 2.1µm pixel pitch on a 2/3-inch sensor (equivalent to 12 megapixels)
|Focal length [mm]||25|
|Iris range (F. no)||F1.8-F22|
|Angle of view||20.0°×15.1°(2/3")|
|Operation of focus||Manual|
|Operation of iris||Manual|
|Filter thread [mm]||M30.5 x 0.5|
|Weight (approx.) [g]||85|
|Sensor size (max.)*3||1/1.2"(4.5μm)|
|TV distortion [%]||0.02|
