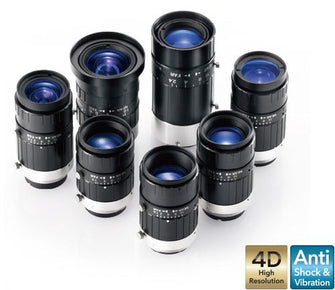

Fujifilm 4DHR High Resolution Lens, this series is designed for "4DHR" and compatible with IMX250 high performance CMOS image sensor (2/3", 5 megapixels, 3.45µm pixel pitch).
This Fujinon XA-5M series feature high performance 4D HR to minimize resolution degredation and maintains a highly consistent image sharpness from the center to the edges, while mitigating degradation of resolution caused by changes in the shooting distance or aperture. This enables consistent delivery of high-resolution images under a wide variety of installation and shooting conditions.
The anti-shock & vibration design is IEC60068-2-6 compliant with a Vibration frequency of 10-60Hz (amplitude of 0.75mm), 60-500Hz (acceleration of 100m/S2) and a Sweep frequency of 50 cycles.
|Focal length [mm]||12|
|Iris range (F. no)||F1.6-F16|
|Angle of view(2/3")||40.1°×30.3°|
|Operation of focus||Manual|
|Operation of iris||Manual|
|Filter thread [mm]||M25.5 x 0.5|
|Weight (approx.) [g]||79|
|Sensor size (max.)*3||1/1.2"(4.5μm)|
|TV distortion [%]||-1.26|
