Fujifilm CF75HA-1

$333.00 $0.00( / )
Shipping calculated at checkout.

Fujinon 1.5 Megapixel 1" Lens


Fujinon 1.5 Megapixel 1" Lens

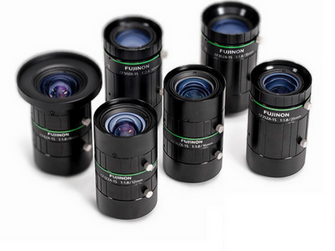

The Fujifilm CF series minimizes distortion which causes problems in applications requiring high accuracy such as dimension measurement, while the low F-number up to F1.4 ensures a clear image even in low light situations. This series is compatible with large 1" image sensor cameras to realize high resolution up to 1.5 megapixels (7.4 pixel pitch).


Focal length [mm]75
Iris range (F. no)F1.8-F22
Angle of view9.8°x 7.3° (1")
Working Distance*2 (mm)∞-900
Operation of focusManual
Operation of irisManual
Filter thread [mm]M49 x 0.75
Weight (approx.) [g]300
Sensor size (std.)*31" (9.1μm)
Sensor size (max.)*41" (9.1μm)
TV distortion [%]0.01
Dimension [mm]Φ51×76
