Fujifilm CF16HA-1 Lens
Fujinon 1.5 Megapixel 1" Lens
Fujinon 1.5 Megapixel 1" Lens

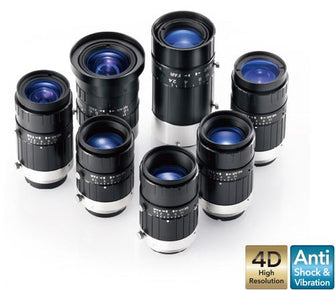

The Fujifilm CF series minimizes distortion which causes problems in applications requiring high accuracy such as dimension measurement, while the low F-number up to F1.4 ensures a clear image even in low light situations. This series is compatible with large 1" image sensor cameras to realize high resolution up to 1.5 megapixels (7.4 pixel pitch).
Focal length [mm] | 16 |
Iris range (F. no) | F1.4-F22 |
Angle of view | 42.6°x 32.8° (1") |
Working Distance*2 (mm) | ∞‐100 |
Operation of focus | Manual |
Operation of iris | Manual |
Filter thread [mm] | M49 x 0.75 |
Mount | C-mount |
Weight (approx.) [g] | 280 |
Sensor size (std.)*3 | 1" (9.1μm) |
Sensor size (max.)*4 | 1" (9.1μm) |
TV distortion [%] | 0.79 |
Dimension [mm] | Φ51×70.5 |
