Vitek VT-TNV128E1-128T

nws-loretech
|
VIT148
$11,155.56 $0.00( / )
Shipping calculated at checkout.

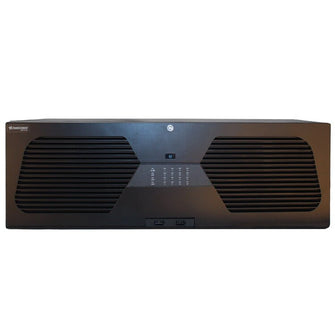

Transcendent 128 Channel 12 MegaPixel H.265 Real Time Enterprise Class Network Video Recorder

Categories:
Transcendent 128 Channel 12 MegaPixel H.265 Real Time Enterprise Class Network Video Recorder
Vendor: nws-loretech SKU: VIT148 Weight: 51.0 lb

Network Input 128 IP Channels up to 12 MegaPixel, 640MbPS

Video Output  HDMI1: 3840 × 2160@60fps / 3840 × 2160@30fps / 1920 × 1080 / 1280 ×  1024 / 1024 × 768, HDMI2: 1920 × 1080 / 1280 × 1024 / 1024 × 768, HDMI3:  1920 × 1080 / 1280 × 1024 / 1024 × 768, HDMI4: 1920 × 1080 / 1280 ×  1024 / 1024 × 768, VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768

Recording Compression  H.265+ / H.265 / H.264

OS Embedded Linux

Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/ 720P/960H/D1/CIF

Audio Over IP Input, HDMI Audio Out 128 (Camera Dependent), YES

2-Way Audio / Local Output RCA × 1

Recording Streams / FPS Dual Stream (CBR & VBR) / 30 (NTSC)

Recording Modes Manual / Timer / Motion / Sensor / Analytics

Simultaneous Playback, Search / Smart Search Max 16 CH, Time Sliced Image Search, Time/Calendar Search, Event (Motion, External Alarm), Tag Search

Intelligent Analytics Face Detection,Target Counting, Intrusion, Region Entrance / Exit, Line Crossing, Scene Change, Video Blur

Face Detection and Recognition Capacity Up to 4 Standard (Non-Analytic Cameras) Detection: 128 IP Cameras with FD / Recognition: 16 IP Cameras with FD

Face Detection and Comparison  128CH / 32 Libraries / 10,000 Face Pics / Computing 36 Pictures per  Second / Add, Modify, Delete and Search Pics / Add w/ App, Web, and Ext.  Import / Face Track / Face Map (Resolution: ≤2560×1920, jpg ≤512B),  External Enrollment (128×128~1920×1080) (jpg ≤70KB)

Alarm Modes Sensor, Motion, Video loss, IP conflict, Disk Error, Illegal access, Network Disconnection

Alarm In / Out 24 Inputs / 8 Outputs

Alarm Triggering Record, Snap, PTZ Move, Alarm Out, E-mail

Network Interface RJ45 10 / 100 / 1000 Mbps × 2

Bit Rate (Per Camera) 512Kbps ~ 10 Mbps (Adjustable)

Total Bandwidth Display Priority 128Mbps / Network Priority 640Mbps

 Dual-stream Individual Network Video Stream and Local Recording Stream, Set Separately

PTZ Preset Auto Cruise, up to 255 Presets and 8 Cruises

Network Protocols TCP/IP/UDP/DHCP/DNS/PPPOE/DDNS/Email/UPNP/NAT/ Telnet

External Interface / Reset USB 2.0 × 2, USB 3.0 × 1, RS 485 (Full Duplex), RS 232 / YES

Remote Viewing CMS / Web Browser / Mobile Platforms

Backup Network, USB

SATA HDD SATA x 16, max 10TB each (Total 160TB)

RAID 0, 1, 5, 6, 10

PTZ Protocol Through Network

USB USB 2.0 x 2 (for mouse and USB backup device)

Power Consumption / Supply 50w without HDD / ATX 300w

Working Environment 32°~122°F @ 10% ~ 90% RH

Dimensions (WxHxD) 17.20” × 19.02” × 5.63” (437mm×483mm×143mm)

Weight 30.9lbs (14kg) without HDD

Lead time varies by product. Standard non-back-order items ship within 1-7 days. Items in stock at our Sacramento warehouse ship on the same day that the order is placed. Back-ordered item lead times vary and are based on current production backlogs and existing open orders. After receipt of order you will be contacted with a shipping timeline. Please look out for a call or email from us about your ship date.

*Note, if the order is resale or government tax exempt, contact us to place the order directly with our sales staff and provide your tax exemption form.
