2/3" 50mm 10MP

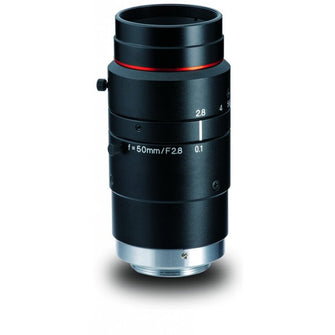

The Kowa LM50JC10M features 200lp/mm resolution and low distortion in order to maximize performance for high-end applications.
Floating mechanism design virtually eliminates optical abberations from close distance to infinity
High precision aspherical lens greatly reduces distortion.
Incorporates wide-band coating and a floating mechanism design to maintain a high transmission from visible to NIR.
Easy installation in compact machine vision systems.
Typically ships in 1-3 days. Full manufacture warranty.
Authorized Kowa distributor.
Image Size 2/3" (8.8 x 6.6 x 11mm)
Iris Range (F-Stop) F2.8 - 16
Angle of View 1/2" (Hor. x Ver. x Dia.) 7.3 x 5.5 x 9.2°
Angle of View 1/1.8" (Hor. x Ver. x Dia.) 8.2 x 6.1 x 10.3°
Angle of View 2/3" (Hor. x Ver. x Dia.) 10.1 x 7.6 x 12.6°
Exit Pupil Location -83.8mm
Temperature Range -10°C ~ +50°C
Storage Temperature Range -20°C ~ +60°C
Resolution: Center/Corner Center 200lp/mm / Corner 140lp/mm
