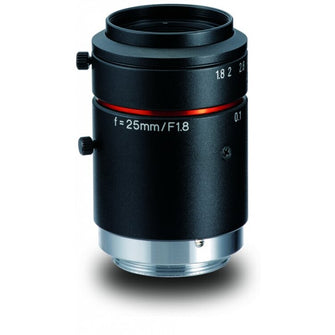

Kowa LM25JC10M

$760.00 $0.00( / )
Shipping calculated at checkout.

2/3" 25mm 10MP

2/3" 25mm 10MP


The Kowa LM25JC10M features 200lp/mm resolution and low distortion in order to maximize performance for high-end applications.

Floating mechanism design virtually eliminates optical abberations from close distance to infinity

High precision aspherical lens greatly reduces distortion.

Incorporates wide-band coating and a floating mechanism design to maintain a high transmission from visible to NIR.

Easy installation in compact machine vision systems.

Vendor: Kowa Product Type: PHYSICAL SKU: SQ2073017 Weight: 1.0 lb

Ships in 1-3 days. Full manufacture warranty.

Authorized Kowa distributor.

  • Image Size 2/3" (8.8 x 6.6 x 11mm)

  • Iris Range (F-Stop) F1.8 - 16

  • Angle of View 1/2" (Hor. x Ver. x Dia.) 14.6 x 11.0 x 18.2°

  • Angle of View 1/1.8" (Hor. x Ver. x Dia.) 16.4 x 12.3 x 20.4°

  • Angle of View 2/3" (Hor. x Ver. x Dia.) 20.0 x 15.1 x 24.9° TV Distortion -0.09%

  • Mount C-mount Exit Pupil Location -102.1mm

  • Temperature Range -10°C ~ +50°C Storage Temperature Range -20°C ~ +60°C

  • Resolution: Center/Corner Center 200lp/mm / Corner 140lp/mm

  • Weight 95g
