Low Angle Ring Illumination
The Moritex Low Angle Direct Ring Illumination features high density light for 360 degree uniform, shadowless illumination. This series is ideal for embossing, scratches, and applications in need of shallow angle lighting.

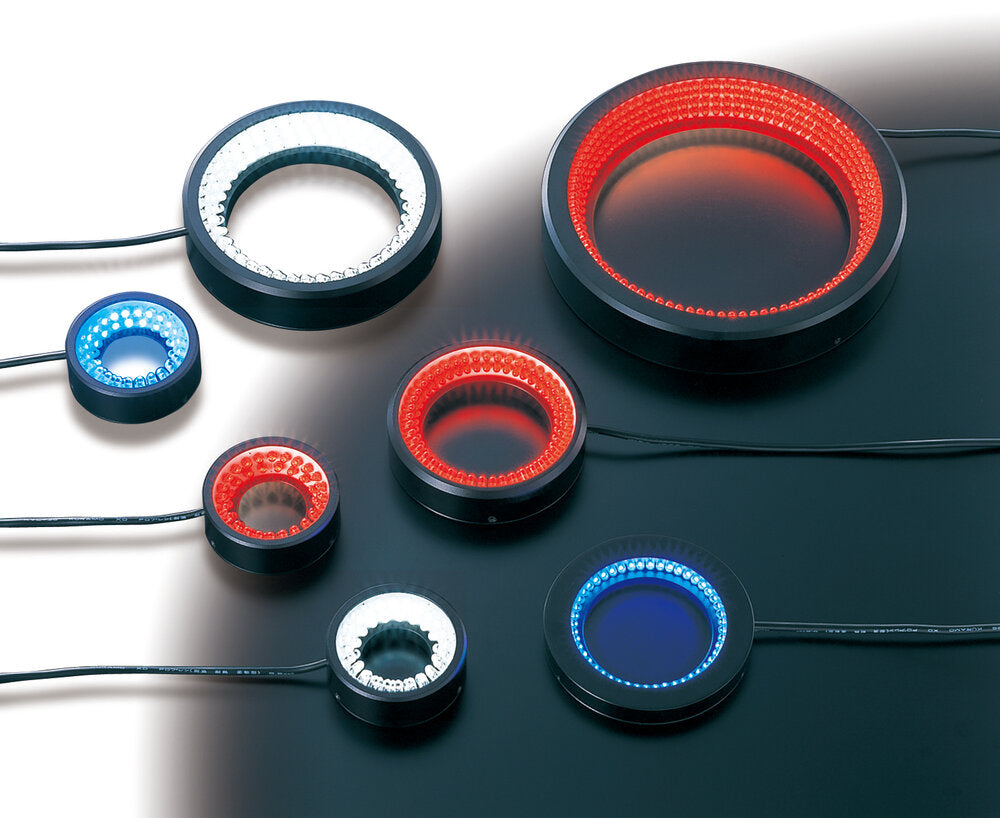

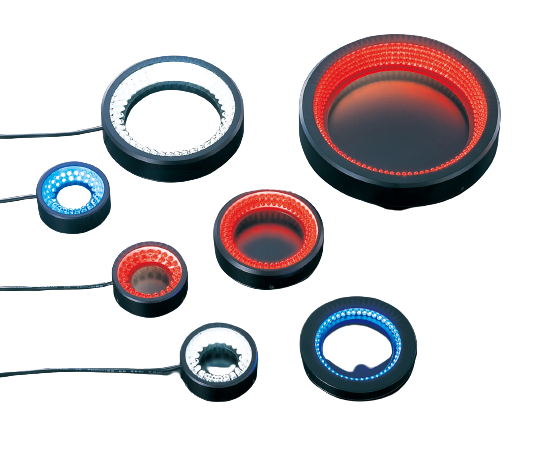

MLRL Series
MLRL-CR25 | Red | Max Rated Current 0.15 | Inner Diameter: 25mm
MLRL-CB25 | Blue | Max Rated Current 0.24 | Inner Diameter: 25mm
MLRL-CW25 | White | Max Rated Current 0.24 | Inner Diameter: 25mm
MLRL-CR48 | Red | Max Rated Current 0.3 | Inner Diameter: 48mm
MLRL-CB48 | Blue | Max Rated Current 0.47 | Inner Diameter: 48mm
MLRL-CW48 | White | Max Rated Current 0.47 | Inner Diameter: 48mm
MLRL-CR100 | Red | Max Rated Current 0.96 | Inner Diameter: 100mm
MLRL-CW100 | White | Max Rated Current 1.03 | Inner Diameter: 100mm

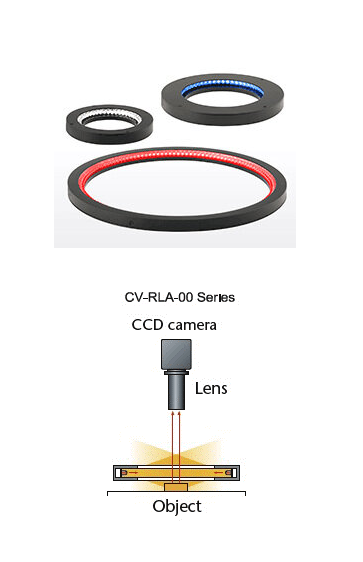

CV-RLA-00 Series
CV-RLA-75X46-00R(-M12) | Red | Power (W) 0.5 | Inner Diameter: 46mm
CV-RLA-75X46-00B(-M12) | Blue | Power (W) 2.5 | Inner Diameter: 46mm
CV-RLA-75X46-00W(-M12) | White | Power (W) 2.8 | Inner Diameter: 46mm
CV-RLA-96X60-00R(-M12) | Red | Power (W) 0.7 | Inner Diameter: 60mm
CV-RLA-96X60-00B(-M12) | Blue | Power (W) 3.1 | Inner Diameter: 60mm
CV-RLA-96X60-00W(-M12) | White | Power (W) 3.5 | Inner Diameter: 60mm
CV-RLA-200X170-00R(-M12) | Red | Power (W) 2 | Inner Diameter: 170mm
CV-RLA-200X170-00B(-M12) | Blue | Power (W) 5.9 | Inner Diameter: 170mm
CV-RLA-200X170-00W(-M12) | White | Power (W) 6.1 | Inner Diameter: 170mm

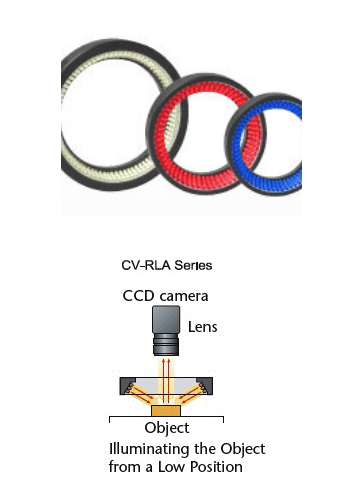

CV-RLA Series
CV-RLA-74X48-30R(-M12) | Red | Power (W) 2.2 | Inner Diameter: 48mm
CV-RLA-74X48-30B(-M12) | Blue | Power (W) 5.6 | Inner Diameter: 48mm
CV-RLA-74X48-30W(-M12) | White | Power (W) 5.3 | Inner Diameter: 48mm
CV-RLA-100X70-30R(-M12) | Red | Power (W) 1.8 | Inner Diameter: 70mm
CV-RLA-100X70-30B(-M12) | Blue | Power (W) 8.7 | Inner Diameter: 70mm
CV-RLA-100X70-30W(-M12) | White | Power (W) 8.4 | Inner Diameter: 70mm
CV-RLA-132X96-15R(-M12) | Red | Power (W) 2.5 | Inner Diameter: 96mm
CV-RLA-132X96-15B(-M12) | Blue | Power (W) 7.1 | Inner Diameter: 96mm
CV-RLA-132X96-15W(-M12) | White | Power (W) 7.2 | Inner Diameter: 96mm
